Application:

The cables are for the service-entrance.

Service conditions: The cable shall be a service cable for continuous operation outdoors and tropical conditions(temperature range of -1ºC to +40ºC, humidity of up to 90% and saline conditions along the coast), suitable for laying in cable ducts and in air, permissible continuous loading operating temperature shall be 70ºC and short circuit temperature of 160ºC.

Standard:

XLPE/PE /PVC Insulated Concentric Cable is designed as IEC ,BS ,ASTM and othere standard or according to client's requirement.

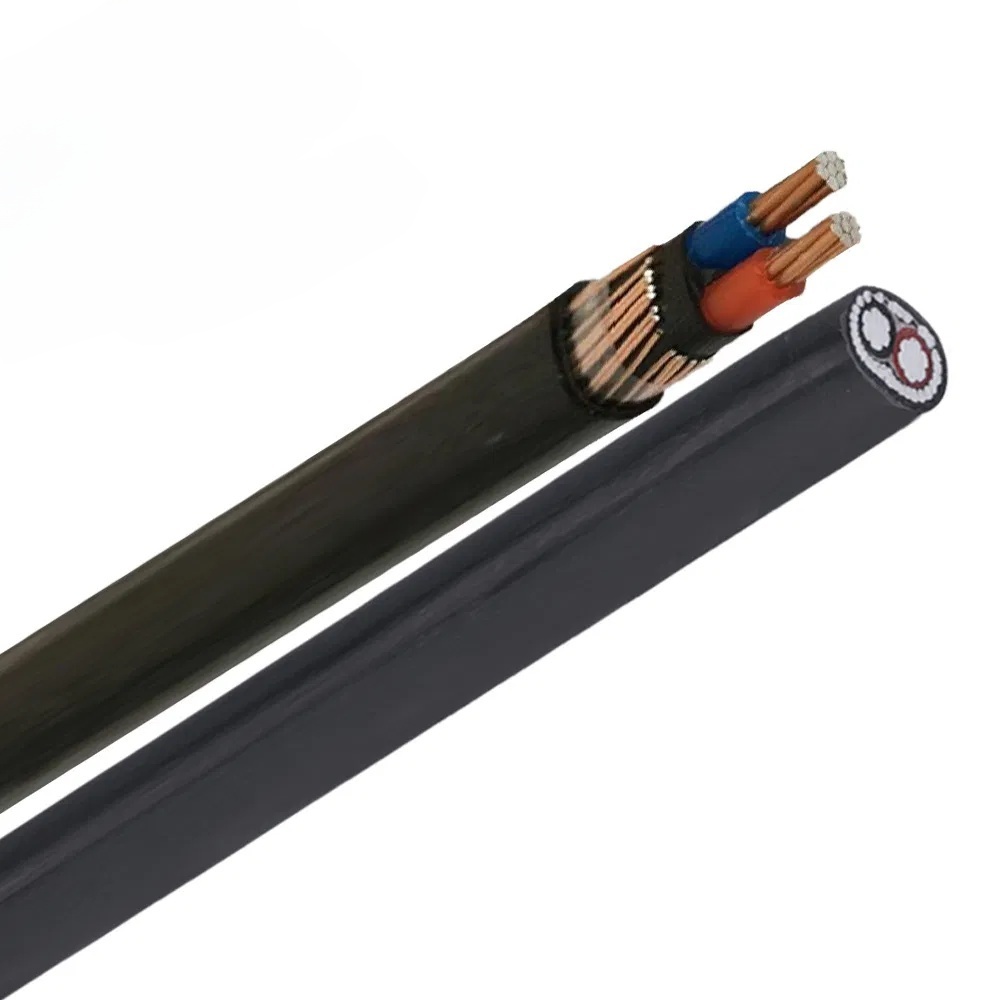

Construction:

1.Solid or stranded aluminium or copper or 8000 aluminum alloy conductor
2.Insulation with XLPE or PE or PVC
3.For two conductor cable, it is applied a helical mesh of copper wires over the central conductor,
4.For three or four conductors cable , parallel conductor or stranded conductor
5.PVC filler
6.Helical mesh of copper wires
7.Wrapping tape
8.Black color jacket of PE or PVC

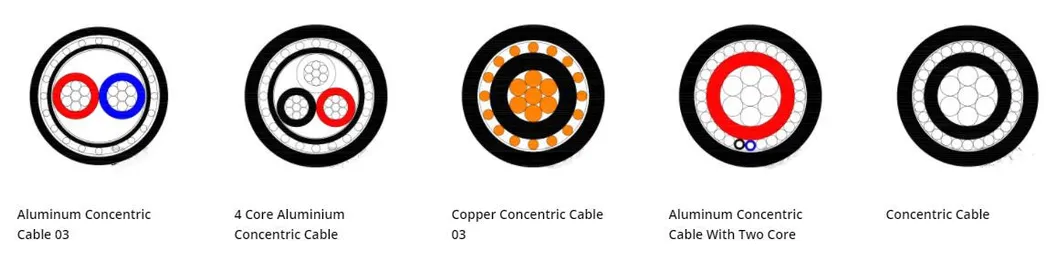

Type:

Size: 2x8mm2, 2x10mm2, 2x16mm2, 2x25mm2, 2x35mm2

Single core type round with full neutral entrance cable

Single core type round with less neutral entrance cable

Single core type round with full neutral and communication cores entrance cable
