APPLICATION

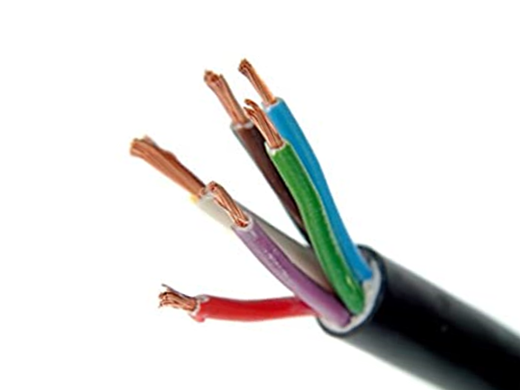

Copper Conductor PVC Insulated Copper Wire Braid ( CWB ) Screened PVC Sheathed Flexible Control
Cable (KVVRP) is mainly used for system connection wire of control,signal,protection or measuring for
rated voltage up to and including 450/750V.

CABLE STANDARDS
GB/T,JB/T,IEC,BS,DIN,ICEA up on request.

BASIC INFORMATION
Code Name
KVVRP
Rated Voltage (Uo/U)
450/750V
Cable Structure
CU/PVC Insulation/Braid Screened/PVC Sheathed

CONSTRUCTION
Conductor
Preferred Number of cores:
2,3,4,5,7,8,10,12,14,16,19,24,27,30,37,44,48,52,61
The conductors shall comply with the requirement given in IEC 60228 for class 5
Insulation
PVC(Polyvinyl Chloride) Type PVC/D according to IEC
Metallic Screened
Copper Wire
Sheathed
PVC(Polyvinyl Chloride) Type PVC/ST5 according to IEC
Other special application cable can be provided upon requests:
Fire-resistant,Flame-retardant,Low-halogen,Non-halogen,Low-fume,Low-smoke ( LSZH ),as well as acid-
alkali-proof,High temperature resistant,Termite and Rodent resistant, Water proof series and so on.

CHARACTERISTICS
Conductor temperature
Maximum conductor temperature in normal use: 70ºC
Installation temperature
Ambient temperature under installation shall not be below 0ºC
Max.temperature of conductor under short circuit
-(Max.Duration 5 sec.)
PVC Insulated:160ºC
Preferred Permissible bending radius
For non-armoured PVC insulated cable not less than: 12 times of cable diameter
