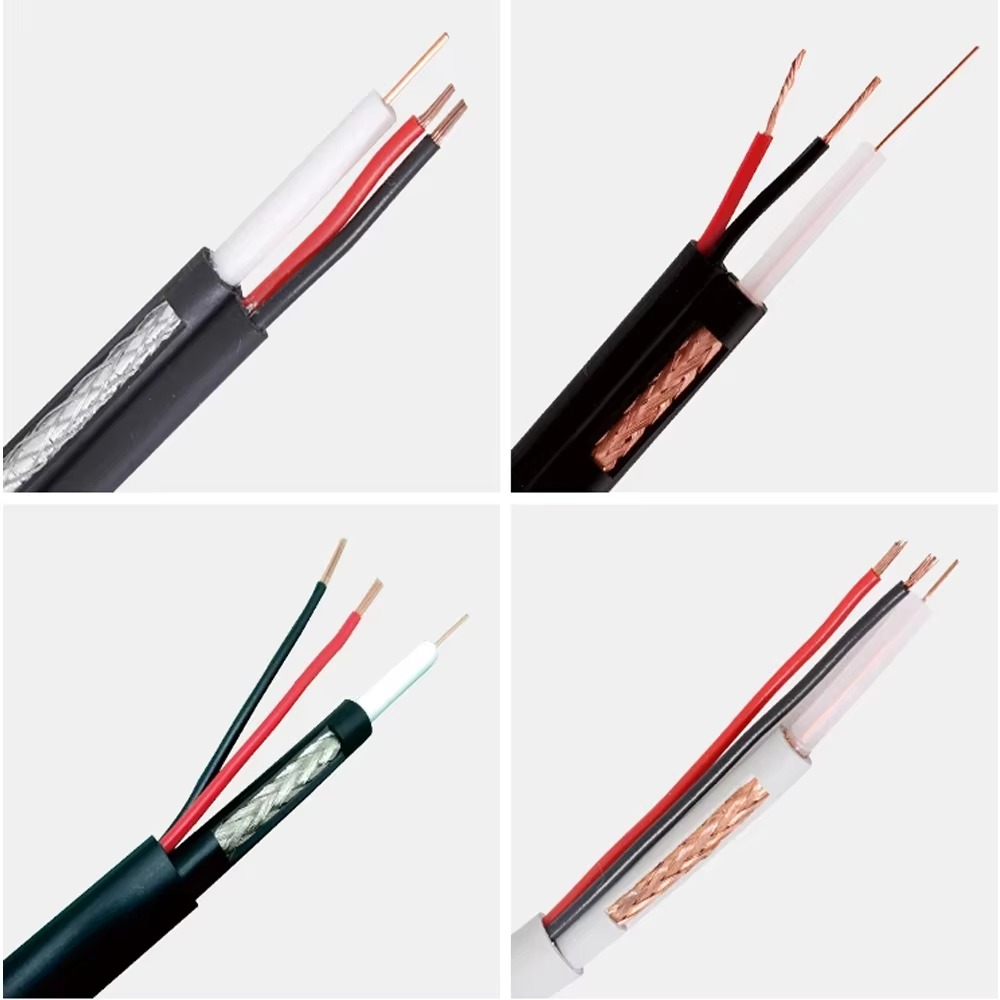

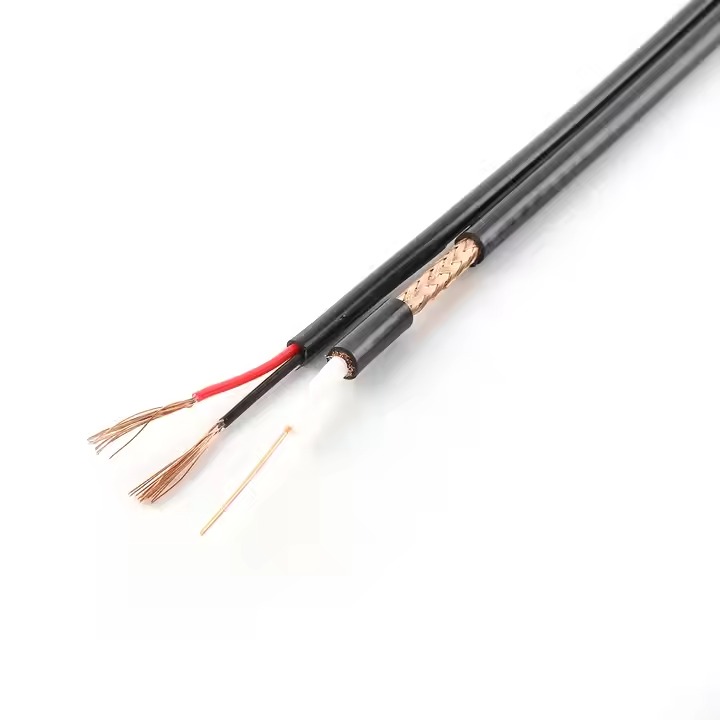

Siamese Cable/1000ft: (RG59+2C, 18AWG)

For analog cameras, HD-CVI/TVI/AHD Cameras and HD SDI Cameras

VIDEO:

Inner conductor: Bare Copper,  0.80mm, FPE/3.7mm

Braided density: 95%=8X16X0.12mm CCA

diameter: PVC, 6.0mm

Power:

18AWG, 2*7X0.37mm CCA, red and black, PE/1.7mm

PVC:white or black, 4.4mm

Length of cable: 1000feet=305m
