APPLICATION

Direct burial in free-draining soil conditions for fixed indoor and

outdoor installations.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

Operating Temperature: -20 to +90 oC

Minimum Bending Radius

1.5mm2 to 16mm2 - Fixed: 6 x overall diameter

25mm2 and above - Fixed: 8 x overall diameter

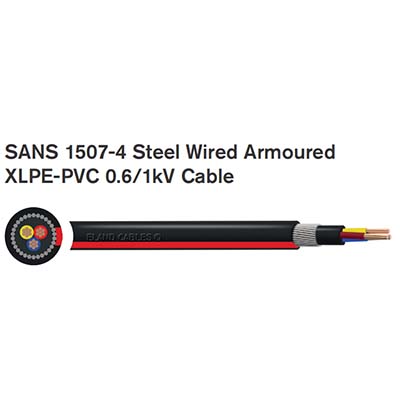

CONSTRUCTION

Conductor

Copper conductor

Insulation

XLPE (Cross-linked Polyethylene)

Bedding

PVC (Polyvinyl Chloride)

Armour

SWA (Galvanized Steel Wire Armour)

Sheath

PVC (Polyvinyl Chloride)

Core Identification

2 core: Red Yellow

3 core: Red Yellow Blue

4 core: Red Yellow Blue Black

Sheath Colour

Black with Red Stripe

STANDARDS

SANS 1507-4

Flame Retardant according to IEC 60332-1-2
