APPLICATION

Power cables for power networks, underground and in cable

ducting. Suitable for direct burial.

CHARACTERISTICS

Voltage Rating Uo/U (Um)

6.35/11 (12)kV

Temperature Rating

Fixed: 0°C to +90°C

Temperature Index

0°C to +90°C

Minimum Bending Radius

12 x overall diameter

(10 x overall diameter where bends are positioned adjacent to a joint or terminations provided

that the bending is carefully controlled by the use of a former)

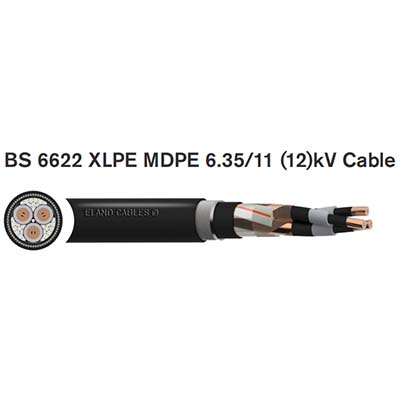

CONSTRUCTION

Conductor

Class 2 stranded copper conductor

Conductor Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Insulation

XLPE (Cross-Linked Polyethylene)

Insulation Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Separator

Water blocking tape

Insulation Screen

Semi-conductive XLPE (Cross-Linked Polyethylene)

Metallic Screen

Individual copper wire screen

Filler

PET (Polyethylene Terephthalate) fibres

Separator

Binding tape

Bedding

PVC (Polyvinyl Chloride)

Armour

SWA (Steel Wire Armoured)

Sheath

MDPE (Medium Density Polyethylene)

Sheath Colour

Red Black

STANDARDS

BS 6622, IEC 60502-2, IEC/EN 60228
