APPLICATION

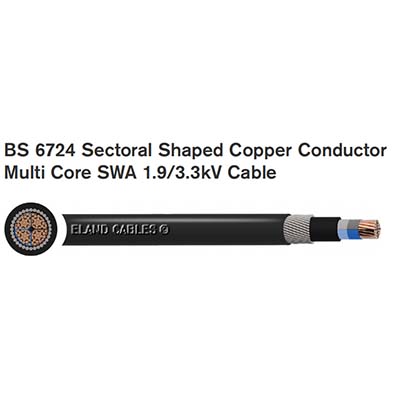

The BS 6724 1.9/3.3kV sector shaped cable is suitable for

direct burial free-draining soil conditions for fixed indoor

and outdoor installations. Low level of smoke emission and

corrosive gasses in case of fire.

CHARACTERISTICS

Voltage Rating Uo/U

1.9/3.3kV

Test Voltage

Between conductors: 1125kV

Between each conductor and armour: 650kV

Temperature Rating

Maximum Operating: +90ºC

Maximum Short-Circuit: +250°C

Minimum Bending Radius

8 x overall diameter

CONSTRUCTION

Conductor

Class 2 sectoral shaped stranded copper

Insulation

XLPE (Cross-Linked Polyethylene)

Filler

HFFR (Halogen free flame retardant)

Armour

SWA (Galvanised round steel wire armour)

Outer Sheath

HFFR (Halogen free flame retardant)

Core Identification

Brown Black Grey

Sheath Colour

Black

STANDARDS

BS 6724, EN 60228, IEC 60502-1

Flame retardant to EN 60332-1

Low Smoke Halogen Free to IEC/EN 61034-1/2, IEC/EN

60754-1/2

UV Resistant
