APPLICATION

For use in agricultural workshops, building sites, for heavy duty

applications and supplying industrial and agricultural machines

and appliances where cables are subject to medium mechanical

stresses (e.g. heating plates, inspection lamps, electric tools

such as drills, circular saws, and domestic electric tools). Use in

dry, humid or moist rooms; fixed installations e.g. on rough-cast

in temporary buildings and huts for accommodation purposes.

CHARACTERISTICS

Voltage Rating Uo/U

450/750V

Test Voltage

2.5kV

Temperature Rating

Operating: -40ºC to +90ºC

Maximum Short Circuit Temperature: 250ºC (Max. 5 seconds)

Minimum Bending Radius

5 x overall diameter

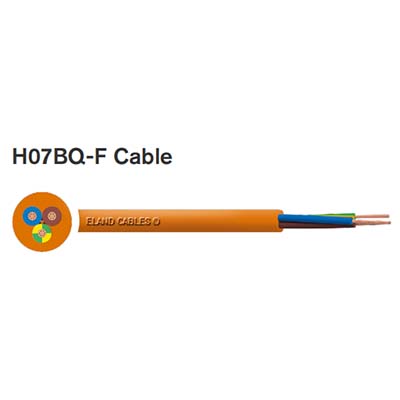

CONSTRUCTION

Conductor

Class 5 Flexible Copper

Insulation

Cross-linked EPR (Ethylene Propylene Rubber)

Outer Sheath

PUR (Polyurethane)

Core Identi ication

2 core: Blue Brown

3 core: Green/Yellow Blue Brown

4 core: Green/Yellow Brown Black Grey

5 core: Green/Yellow Brown Black Grey Blue

Sheath Colour

Orange

STANDARDS

EN 50525-2-21, EN 60228, EN 50363-1, EN 50363-10-2,

IEC/EN 60724

Water Resistance AD7 according to IEC 60364-3
