APPLICATION

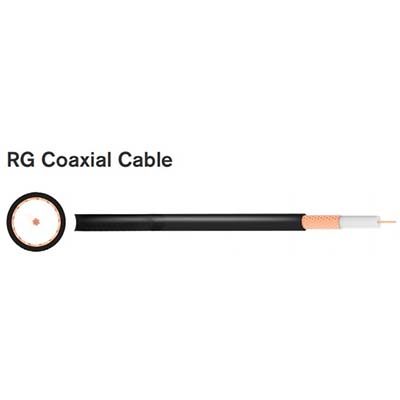

RG6, RG11, RG58, RG59, RG179, RG213 cables for high

quality RG Type Coaxial cables, 50 or 75 Ohm is suitable for

many applications, including low power video, video signal, and

broadband signals.

CHARACTERISTICS

Voltage Rating

30V

Temperature Rating

-20°C to +75ºC

CONSTRUCTION

Conductor

RG6 / RG11 / RG59: CCS (Copper Clad Steel)

RG58 / RG179: TCW (Tinned Copper Wire)

RG59 Shotgun: CCA (Copper Clad Aluminium)

RG213: Plain Copper

Insulation

RG6 / RG11 / RG 179: FPE (Foam Skin Polyethylene)

RG58 / RG59 / RG59 Shotgun / RG213: PE (Polyethylene)

Shield

RG6: Aluminium foil

Braiding

RG6 / RG59 / RG59 Shotgun: CCA (Copper Clad Aluminium)

RG58: TCWB (Tinned Copper Wire Braid)

Sheath

RG6 / RG11 / RG58 / RG59 / RG179 / RG213: PVC

(Polyvinyl Chloride)

RG59 Shotgun / RG213 LSZH: LSZH

(Low Smoke Zero Halogen)

Sheath Colour

Black

STANDARDS

EN 50117-1

Flame Retardant to EN 60332-3-10, IEC/EN 60332-1-2
