APPLICATION

These cables are used for flexible connections requiring an

anti-inductive screen (EMC). GVCSTV LSLH C1 cables are

fire retardant in compliance with the requirements of the

NFC 32070 C1 standard.

CHARACTERISTICS

Voltage Rating

0.6/1kV

Temperature Rating

Fixed: -10°C + 60°C

Maximum conductor temperature : +70°C

Minimum Bending Radius

7.5 x overall diameter

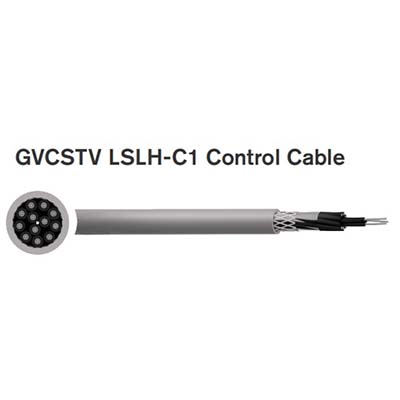

CONSTRUCTION

Conductor

Flexible tinned copper

Insulation

Fire retardant thermoplastic compound

Separator

Separator Tape

Screen

TCWB (Tinned Copper Wire Braid)

Sheath

PVC (Polyvinyl Chloride)

Sheath Colour

Grey

STANDARDS

IEC 61034-2, IEC 60754-1, NF C 32-013 (CEI 228)

Fire Retardant according to NFC 32070 C1, IEC 60332-1-2,

IEC 60332-3-24 Cat C
