APPLICATION

These highly-flexible data cables are suitable for continuous

mobile use under extreme conditions with particular

requirements on EMC. It is applicable in standard drag chains

without tensile load. The cable is resistant against most

chemicals used in industrial environment.

CHARACTERISTICS

Voltage Rating Uo/U

300/500V

Temperature Rating

Fixed: -40ºC to +70ºC

Installation: -5ºC to +70ºC

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 10 x overall diameter

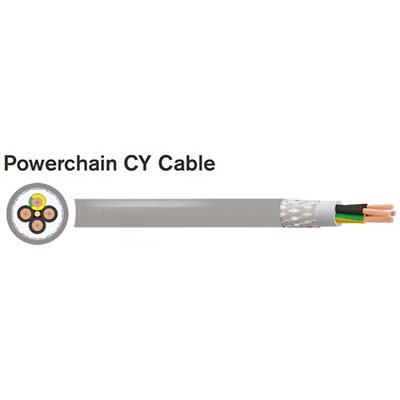

CONSTRUCTION

Conductor

Class 6 Fine Stranded Bare Copper

Insulation

PVC (Polyvinyl Chloride)

Inner Sheath

PVC (Polyvinyl Chloride)

Screen

TCWB (Tinned Copper Wire Braid)

Outer Sheath

PVC (Polyvinyl Chloride)

Core Identification

Black numbered + Green/Yellow

Sheath Colour

Grey

STANDARDS

VDE 0482-332-1-2

Fire Retardant according to: IEC/EN 60332-1
