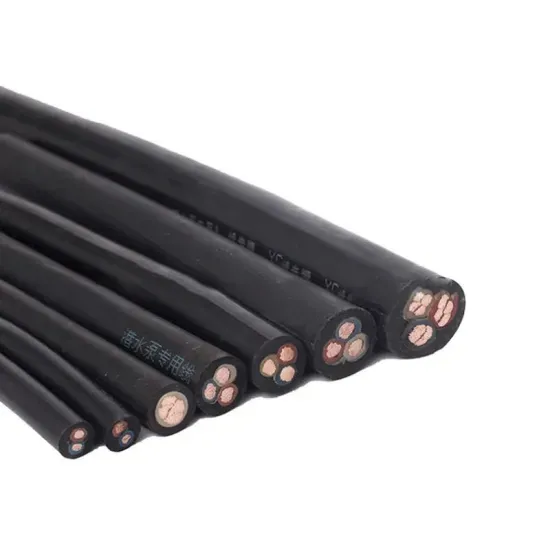

CONSTRUCTION
Conductors: Bare, annealed copper per ASTM B-3 Flexible, bunch-stranded per UL-62
Separator: A paper tape is applied between the conductor and insulation to facilitate stripping.
Insulation: Color coded synthetic rubber (EPDM) oil and water resistant per UL-62
Jacket: Black Chlorinated Polyethylene (CPE)
Cabling: Conductors are assembled round with fillers as needed.
Temperature Range: -40°C to +90°C
Voltage Rating: 600 Volts for SOOW,300 Volts for SJOOW
