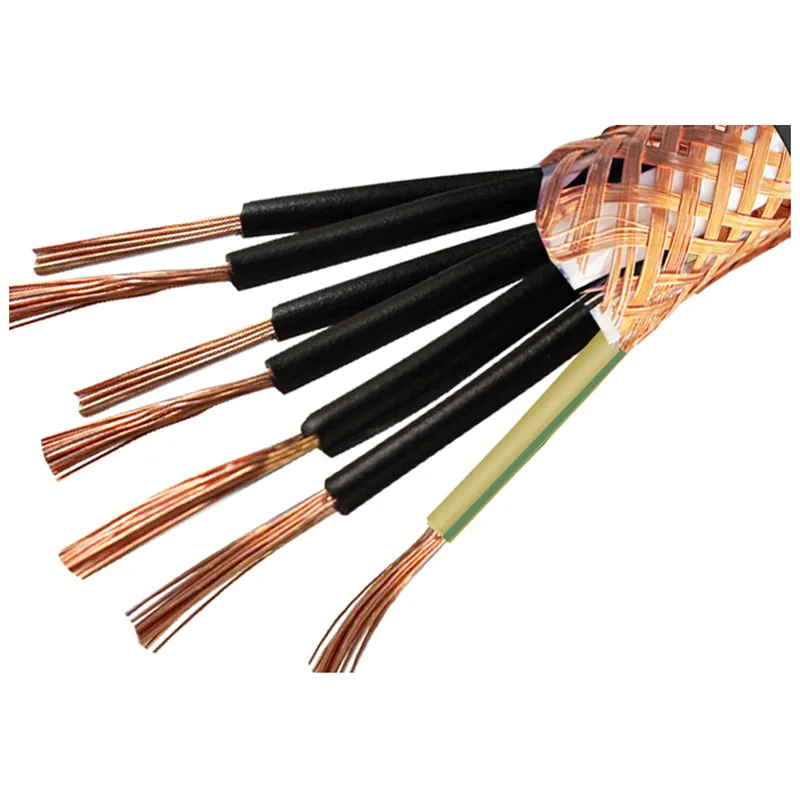

Constructions
Conductor: Plain circular flexible copper conductor, conform to IEC 60228 class 5
Insulation: PVC/A
Fillers: PVC
Shield: Plain circular flexible copper wire braiding
Sheath: PVC
Note: Insulation color as per standards or at request



Applications
Suitable for use in power distribution lines or fixed installations or signal control with rated voltage up to 300/500kV indoor/outdoor, enclosed in conduit, in underground duct where not subject to mechanical damage.

Standards
China: GB/T 5023.2-2007

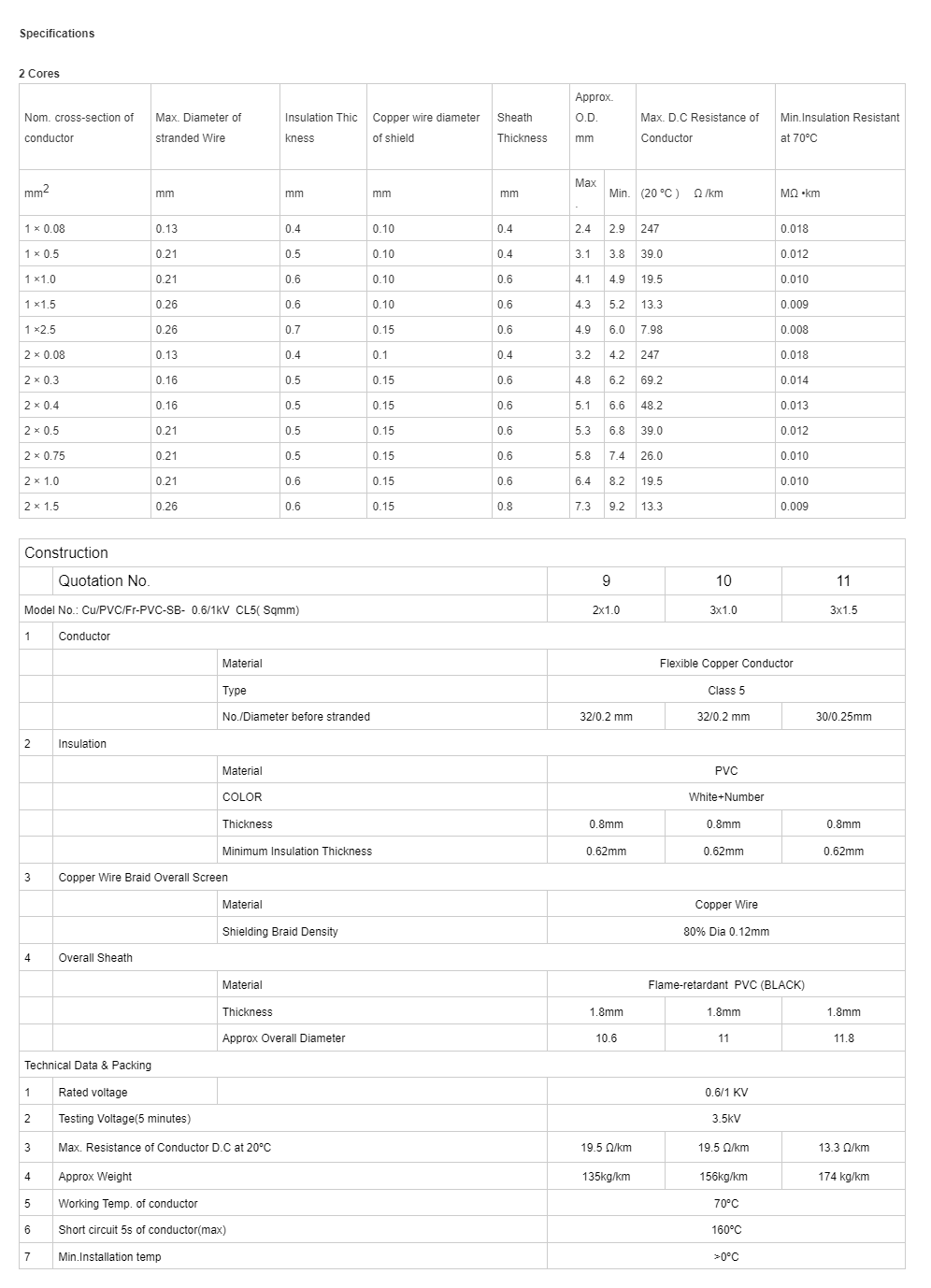

Technical data
Rated voltage: 300 / 500 kV
Max. Conductor Temp.: normal (70ºC), short circuit no more than 5 s (160ºC when section-area below 300mm2, 140ºC when section-area above 300mm2)
Min. Ambient Temp.: 0ºC, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D

Certificates
CE, RoHS, CCC, KEMA and more others at request
