Standard

IEC 60227-5: Polyvinyl chloride insulated cables of rated voltages up to and including 450/750V - Part 5: Flexible cables (cords)

Application

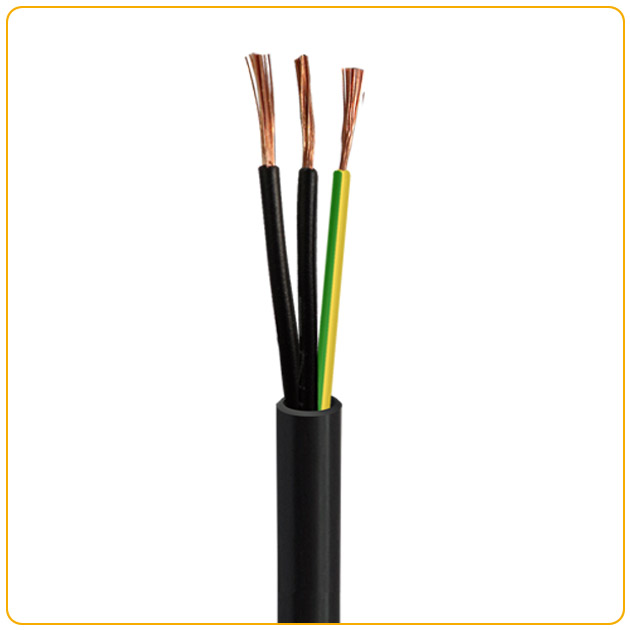

This copper conductor PVC sheath flexible 3 core cable is used in power applications of rated voltage 300/500V and below. Flame retardant and fire resistant 3 core cable is also available.

Product Details

1) Conductor: Class 5 stranded copper
2) Sectional area: 0.5~16 mm2
3) Insulation: PVC
4) No. of cores: 3
5) Outer sheath: PVC
6) Max. working temperature: 70ºC

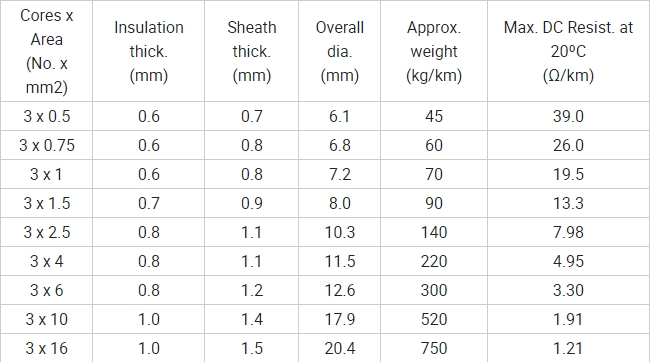

7) Cable size
