Voltage: 0.6/1KV
Model: YJV22, YJV32, YJV42 and more...

Applications:

1. Power transmission

2. In electrical systems within buildings

3. Used in industrial control and automation

4. Transportation

Advantages:
Copper core power cables boast numerous advantages, prominently evident in their formidable physical and electrical traits. These include low resistivity, exceptional strength, outstanding ductility, robust fatigue resistance, unrivaled stability, impressive current carrying capacity, reduced voltage loss, minimal energy consumption, lower heating temperatures, and admirable resistance to oxidation and corrosion.

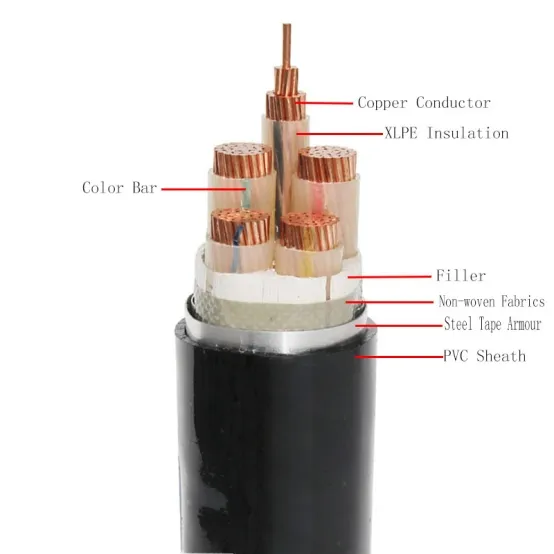

Conductor: Oxygen-free Copper
Insulation material: Crosslinked Polyethylene (XLPE)
Insulation color: Natural Color or to be customized
Filling material: Non-hygroscopic Material
Inner sheath: PVC
Reinforcement: Steel Tape Armored (with options for customization)
Outer sheath: PVC/PE
Sheath color: Black

Physical property:
Maximum operating temperature of conductor:
70ºC with PVC insulation, 90ºC with XLPE insulation

Minimum operating temperature:
-5ºC for PVC or LSZH sheath, -20ºC for PE sheath

Short-circuit temperature (up to 5 seconds) :
Ranging from 140ºC-160ºC with PVC insulation, reaching up to 250ºC with XLPE insulation
