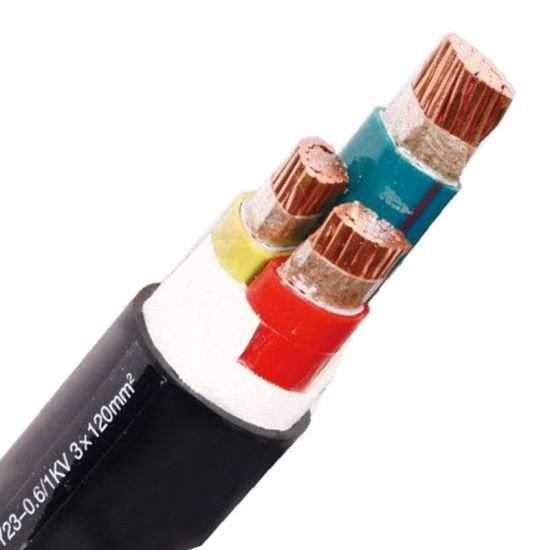

CU/PVC/PVC, IEC 60502
IEC 60502, IEC 60228, GB/T 12706.1-2008.
CE, CCC, KEMA

Constructions
Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation: PVC/A
Inner Covering: PVC
Sheath: PVC  confirm to IEC 60502 Black
Note: Insulation color as per standards or at request
Applications
Suitable for use in power distribution lines or fixed installations with rated voltage up to 0.6/1KV indoor/outdoor, enclosed in conduit, in underground duct where not subject to mechanical damage.

 Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request

Technical data
Rated voltage: 0.6 / 1 kV
Max. Conductor Temp.: normal (70ºC), short circuit no more than 5 s (160ºC when section-area below 300mm2, 140ºC when section-area above 300mm2)
Min. Ambient Temp.: 0ºC, after installation and only when cable is in a fixed position
