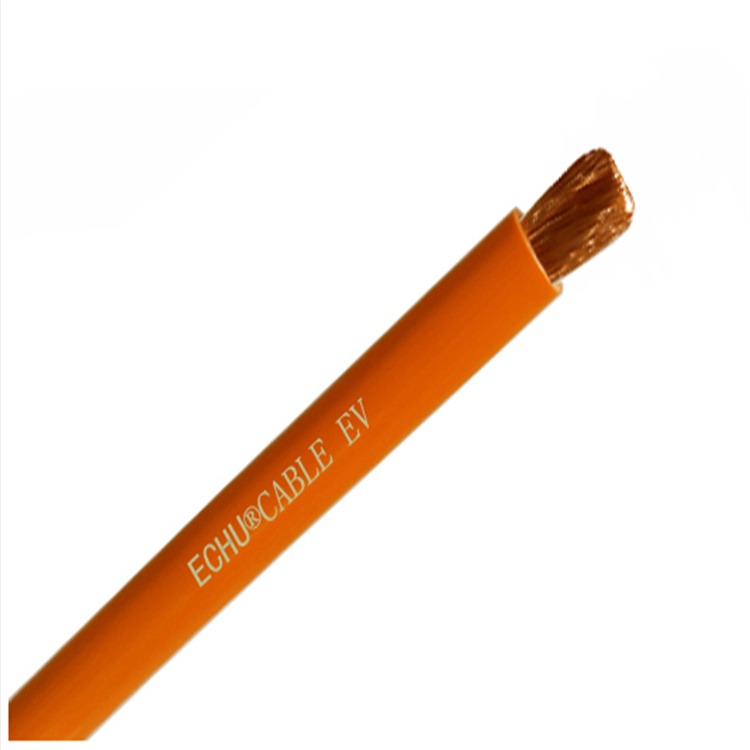

The application scope of electric vehicle charging station cables is mainly concentrated in the field of electric vehicle charging, especially as connection lines for vehicle battery systems, designed specifically for electric vehicle charging stations to connect charging stations with electric vehicles and achieve energy transmission.

Conductor material: Bare copper wire
Conductor type: IEC 60228 class 5
Core wire insulation: XLPO or EVA
Insulation color: Orange (optional)
Shielding material: Tin plated copper wire braided
Sheath material: TPE thermoplastic elastomer
Sheath color: Orange (optional)
Rated voltage: VC1000V/DC1500V;
Test voltage: 5000V/5min
Bending radius: fixed 8xd, moving 12xd
Working temperature: -40 ° C+150 ° C
