1. Standard
IEC 60502, 60228, 60332, 60331
DIN VDE 0276-620
HD 620 S1: 1996

2. Application
This cable is used for fixed installations, such as distrubution networks or industrial installations. It can be installed in
cable duct, trench or directly buried in earth.

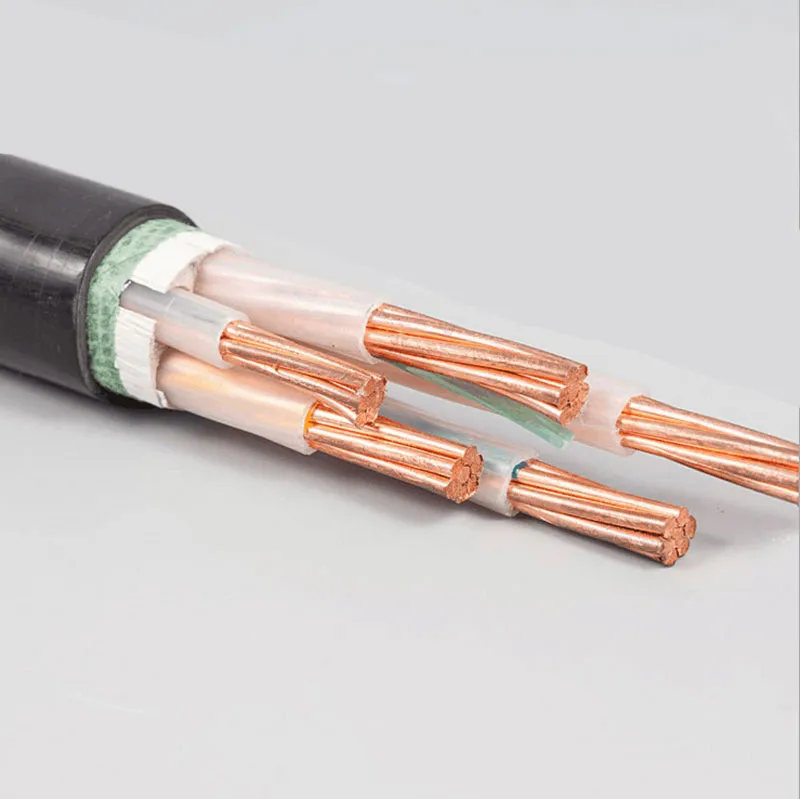

3. Product Description
1) Rated Voltage: 0.6/1KV 3.6/6KV 6.5/11KV, 11KV, 33KV, 66KV, 132KV
2) Maxworking temperature: 75 °c
3) Maxtemperature during short circuit (≤5S): 250 °c
4) Conductor: class 1, 2 copper or aluminum
5) Sectional area: 1.5 - 800mm2
6) Insulation:PVC
7) No. of cores: 1, 2, 3, 4, 5
8) Armor: steel wire or steel tape for 3 core cables and non-magnetic material for single core
9) Oversheath: PVC
10) Minbeding radius: 15 times cable radius for single-core cables and 12 times for multi-core ones
