Multi-pair cables with overall screening for data transmission in electronics and computers, for signaling, measurement, command and control systems, and more generally, where there is a need for efficient protection from external electromagnetic disturbance and compact size.

Suitable for installation in dry or damp indoor environments, in static or limited dynamic installation (not permanently in motion) where there is no mechanical stress.

Underground laying is not permitted even if protected.

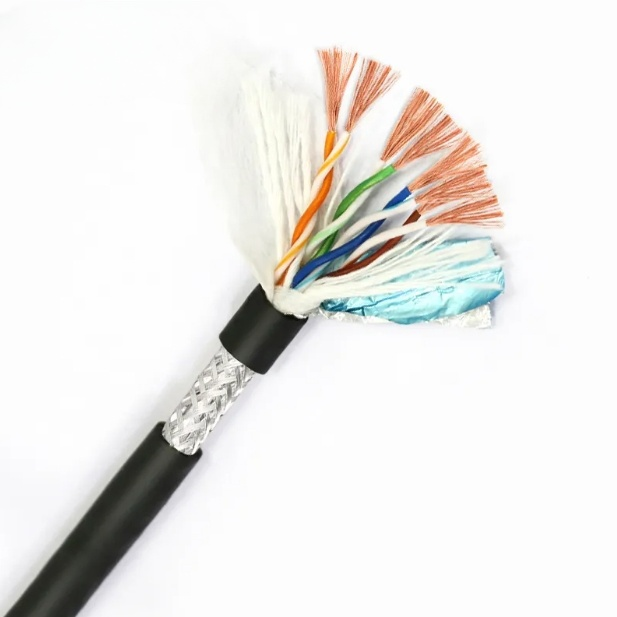

Construction:
Bare copper strands
Strands to DIN VDE-0295 Class-5, IEC 60228 Cl-5
PVC insulation,Stands to DIN VDE 0281 Part 1
Color code DIN47100 - with color repetition
The total cores twist
Plastic isolation belt
85% tinned copper braid
PVC outer jacket - gray (RAL 7001/7032)
Technical:
Working voltage: 250V
Testing voltage: 1200V
Flexing bending radius: 5 x Ø
Flexing temp: -5º C to +70º C
Static temp: -30º C to +80º C
Flame retardant: IEC 60332.1
Insulation resistance: 20 MΩ x km
Approvals:
VDE-0812 & 0814
CE Low Voltage Directive 73/23/EEC/93/68/EEC
RoHS compliant
