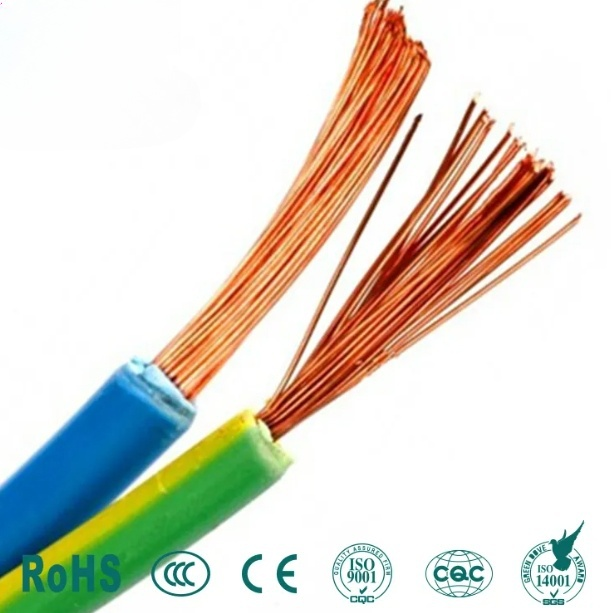

Code: H05V-K  H07V-K | 2491X
Construction
Finely stranded copper conductor
PVC insulation

Standard
BS 6004
HD 21.3 S3

Application
Domestic and light industrial wiring.
Can be clipped to surface, on trays or in free air where there is little risk of mechanical damage.
Suitable for laying into trunking or conduit etc. when mechanical protection is required.
May be embedded in plaster.

Voltage
Rated Voltage: Uo/U = 300/500V - 450/750 V
AC test voltage: 2 kV - 2.5kV

Technical Data
Maximum operating temperature 70°C
Short-circuit temperature 160°C
Current carrying capacity values given below are rated at 30°C ambient temperature
