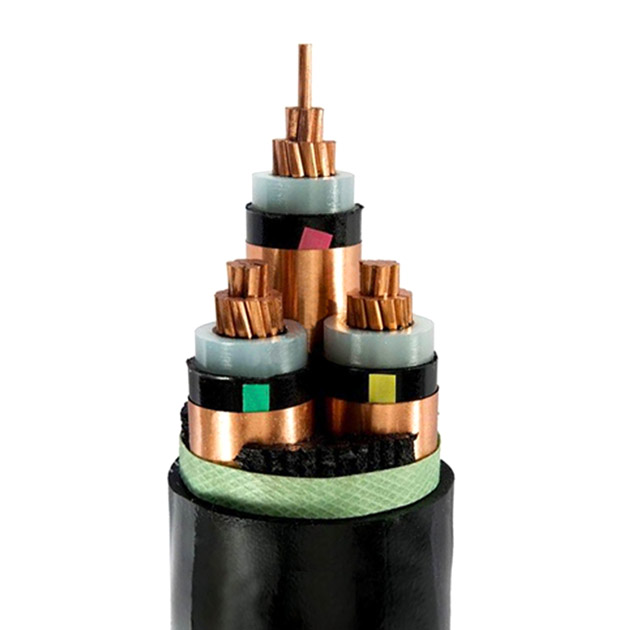

1) Cu(AL)/XLPE/AWA/PVC(PE)

2) 12/20(24)KV

3) Standard: IEC 60502

Application:

It is used to transmit and distribute power in power transmission and distribution system of 35kv or lower. It's generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication.

 Using features:

1. Rated voltage: U0/U: 26/35KV, 21/35KV, 18/30(33)KV, 12/20(24)KV, 8.7/15KV, 8.7/10KV, 6/10KV, 6/6KV, 3.6/6KV

2. Number of cores: one core, three cores

3. Allowable highest operating temperature of conductor is 90oC

4. DC resistance of the conductor complies with the stipulations in IEC 60228

5. Ambient temperature should not be lower than 0oC when the cable is laid.

6. The cable is laid without horizontal drop limit.

7. Partial discharge test: voltage for testing partial discharge is 1.73U0 and discharge capacity should not be more than 10PC.
