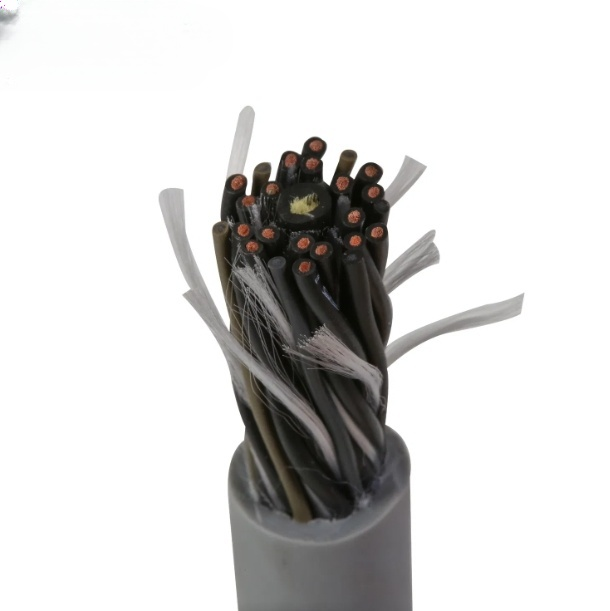

Widely used in extremely harsh indoor and outdoor environments, such as high electrical and mechanical performance requirements in drag chains and mobile drives, with oil resistance, wear resistance, acid and alkali resistance, waterproofing, and UV resistance. It is also suitable for signal and control use in automated CNC machining centers and drag chain systems such as servo motors or servo encoders. And the application of data transmission, measurement, feedback, encoders, rotary transformers, tachometers, signals, and systems in the fields of cranes, conveying facilities, and automated production processes.

  Features

• Compliant with CE, UL/CUL certifications

• Flame retardant, UV resistant, low adhesion, low wear

• Strong tolerance to grease, coolant, and lubricants

Oil resistance meets DIN EN 60811-404

Remarks

• Compliant with RoHS

• Compliant with the 2014/35/EU Guideline ("Low Voltage Directive") CE

• Extremely long service life, optimal cost-effectiveness

• Save space and weight

Conductor material: Bare copper stranded

Conductor grade meets the requirements; DIN VDE 0295 class 6,  IEC 60228 cl. 6

Core wire insulation: PVC-J-105-003 (2105-LF)

Core wire identification:<0.5 mm ²: Color separation is used for cables with 5 or fewer cores, in accordance with n. DIN 47100. For multi-core cables with 5 or more cores, color separation is used with white ink dots for differentiation; ≥ 0,5 mm²:

Color separation is used for cables with 5 or fewer cores, including yellow/green wires, in accordance with n. DIN 47100. For multi-core cables with 5 or more cores, black wires are used, and white ink numbering is used for differentiation (customized according to special requirements)
Cable core wire<10: The core wire is twisted in layers with short pitch

        Core wire ≥ 11: The core wire is twisted twice

Outer sheath: PUR polyether polyurethane

Sheath color: Orange RAL 2004; Grey RAL 7001; Black RAL 9005 (optional)

Rated voltage;     25 and above: 0.6/1KV; 0.75 to 16:300/500V; 0.5 and below 300/300V

Test voltage 3500V; 2000V; 1500V

Conductor resistance meets DIN VDE 0295 cl. 6/IEC 60228 cl. 6 at+20 ℃

The minimum insulation resistance at+20 ℃ is 20 G Ω x km

Fixed bending radius 4 x d

Bending radius movement of 7.5 x D

Mobile speed self-supporting: Max 10 m/s, sliding: Max 5 m/s

Wire length self-supporting/sliding maximum. 400 m

Acceleration max: 100 m/s ²

Bending cycle<35 times/min;   Lifespan>12 million cycles

Fixed temperature level -40 ℃/+105 ℃

Temperature level shift -30 ℃/+105 ℃
