Voltage: 0.45/0.75KV 0.6/1KV
Model: BBTRZ BTTRZ (YTTW) BTLY (NG-A) BTTZ/BTTYZ...

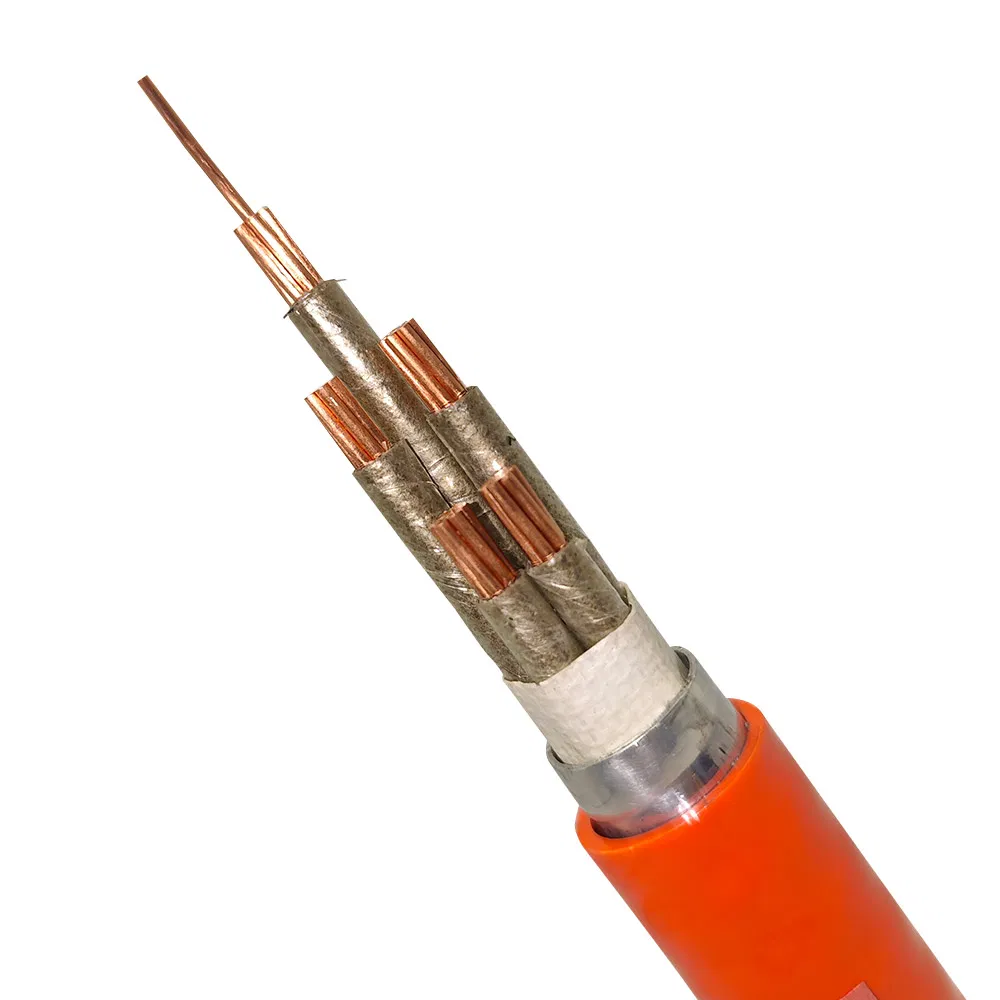

Product name: Mineral fireproof cable
Product Introduction:
Fireproof cables are suitable for lines with rated voltage below 1000V. The continuous working temperature of this cable is 250ºC, the power supply can be sustained for 3 hours at 950ºC-1000ºC, and the melting point of copper can be close to 1083ºC in a short time or in an extraordinary period.
Applications:
Important power supply facilities
Lighting power supply system for crowded places
Places with high temperature environment
Fire-control power supply in buildings
Inflammable and explosive places
Power supply for railway transit

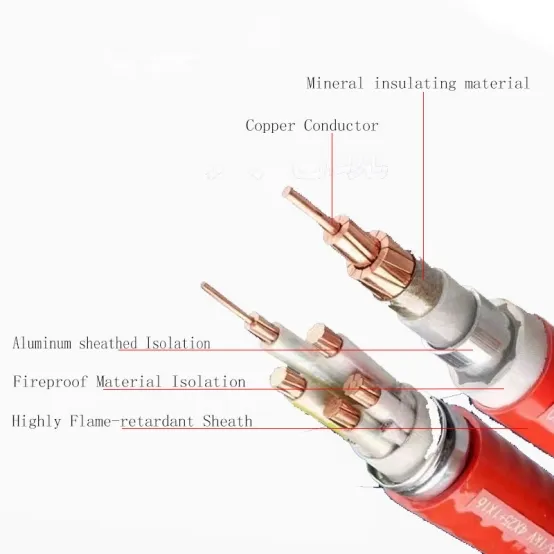

Conductor: Oxygen-free Copper
Outer sheath: Halogen-free Low Smoke Polyolefin
Insulation layer: Mg(OH)2 Mineral/Refractory Glass Fiber
Insulating material: Inorganic Mineral/Mica Tape
Color: Standard color (can be customized)
Specification: 4mm2-300mm2
