Descriptions

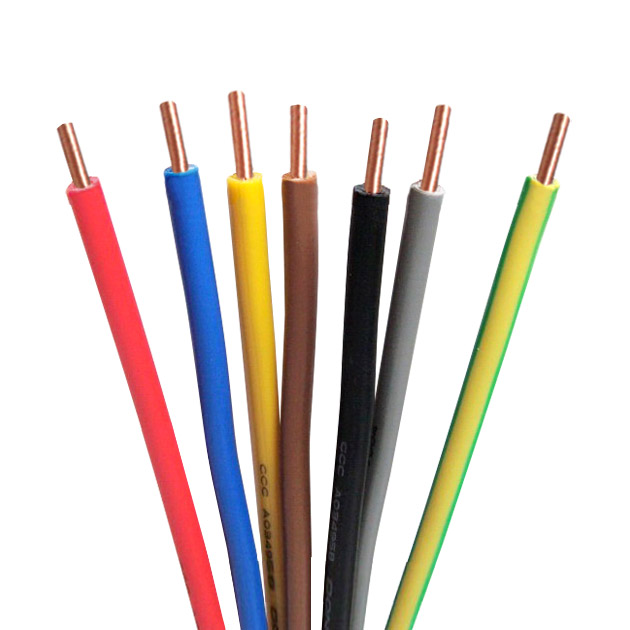

Single-core non-sheathed cables with rigid conductor for general purposes

Code designation: 60227 IEC 05 (International), BV 300/500V(China)

H05VV-F/H05VV-R

Constructions

1.Conductor: Plain circular solid copper conductor, comform to IEC 60228 class 1

2.Insulation: PVC

Applications

Used as fixed wiring cable of rated voltage 300/500V.

Standards

International: IEC 60227

China: GB/T 5023-2008

Other standards such as BS, DIN and ICEA upon request

Technical data

Rated voltage:300/500 V

Max. Conductor Temp. in normal use: 70 ºC

Min. Bending Radius: 4 x cable O.D

Certificates

CE, RoHS, CCC, KEMA and more others at request
