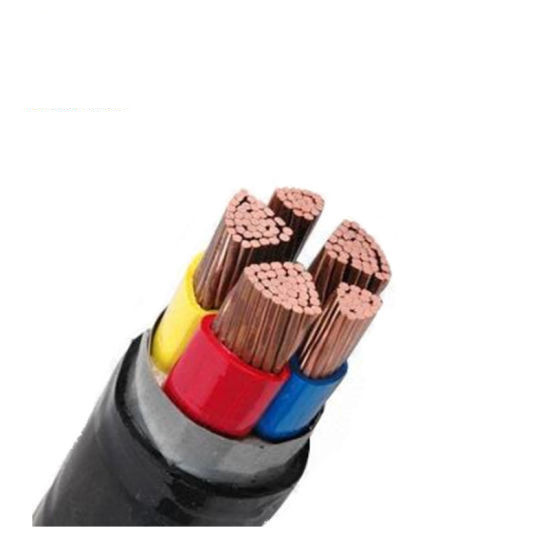

Cable structure

• Stranded bare copper conductor according to IEC 60228

• Core insulation of XLPE (cross-linked polyethylene)

• Color coded cores according to HD 308.S2

• PVC inner sheath

• Armouring of steel wires (SWA)

• Outer black sheath, PVC self-extinguishing and flame retardant, test method IEC 60332-1 and BS 4066 PT1

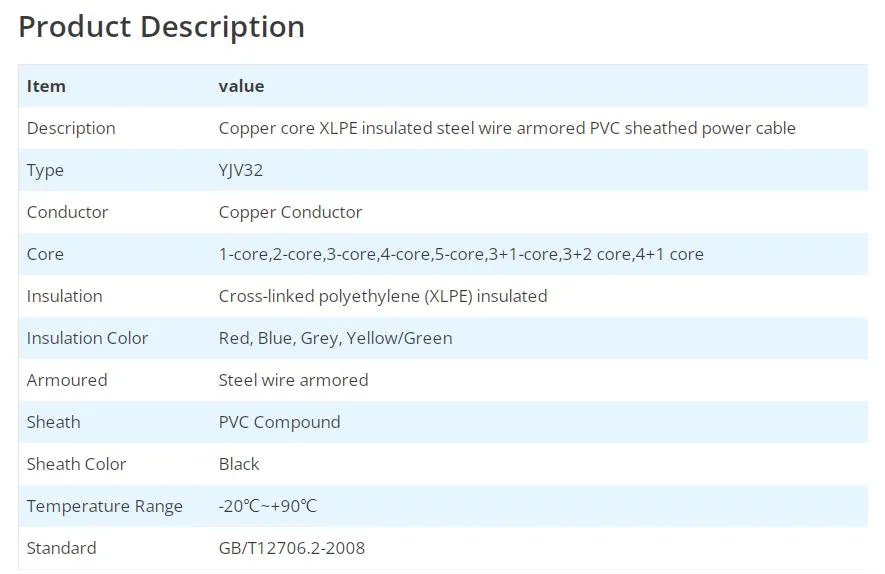

Technical data

• Power and control cable according to BS 5467, IEC 60502

• Temperature at conductor: max. +90°C,

• Temperature during installation: 0°C to +70°C,

• Nominal voltage Uo/U 0,6/1 kV

• Test voltage a.c. 4 kV

• Minimum bending radius 8 x cable diameter

Application

These power and control armoured cables are designed for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards or subscriber networks, where mechanical damages to the cable may occur.
