Used for highly sensitive data processing systems such as measurement, control, and signal processing
2 or more multi-core twisted wire cores
PVC sheath complies with DIN VDE0207 Part 5
The overall structure is: conventional unshielded data cable
Soft and good, oil resistant (light and shallow engine oil, gear oil, lubricating oil, etc.)

Typical application:
Measurement, control, and sound signals, such as low-voltage wiring switchboard equipment, electronic scales, electrical engineering, communication technology, control and measurement technology, office and data equipment, etc.

Product Model:

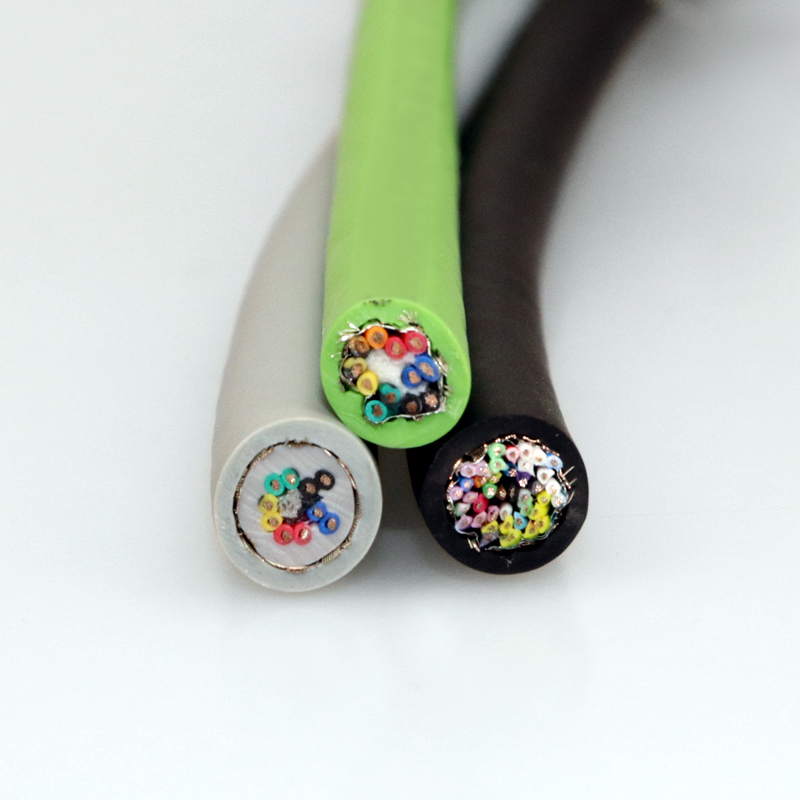

LIYY insulated sheathed data transmission cable

Cable structure:
Conductor: Multiple copper wire twisted conductors comply with DIN VDE 0812
Insulation: PVC, Y12 in accordance with DIN VDE 0207 Part 4

Core: 2 or more cores twisted together
Sheath: PVC Sheath YM1 in accordance with DIN VDE0207 Part 5
Working voltage:<0.25mm ²: maximum 350V ≥ 0.25mm ²: maximum 500V
Test voltage:<0.25mm ²: 800V ≥ 0.25mm ²: 1200V

Temperature range for use:
Mobile installation: -5 ℃~+70 ℃
Fixed installation: -30 ℃~+70 ℃

Minimum bending radius:
Mobile installation: 10xD cable outer diameter
Fixed installation: 5xD cable outer diameter

Flame retardancy: Flame retardancy and self extinguishing comply with IEC60332-1-2+EN60332-1-2
