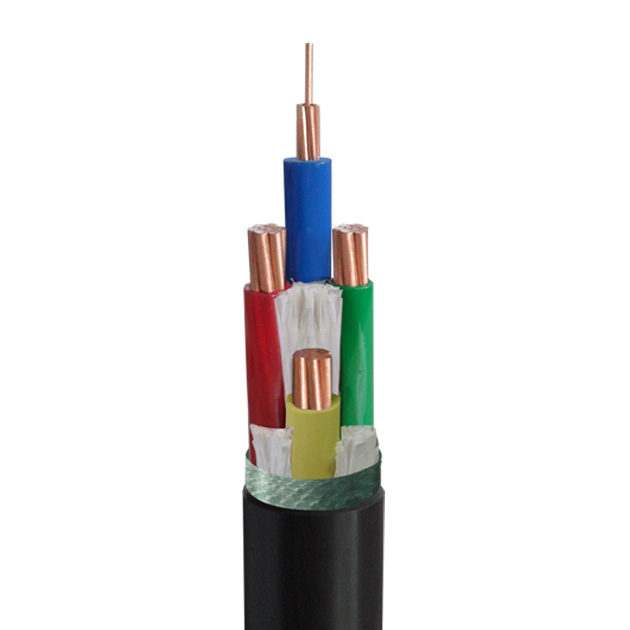

N2X2Y waterproof cable is specifically designed for industrial facilities and urban network distribution systems with a rated voltage of 0.6/1kV and a frequency of 50Hz. Suitable for indoor fixed installation, laid in cable conduits, cable trays, direct burial and trenches, or used in protected marine platforms, humid and underwater environments.

Conductor: Bare copper wire stranded conductor, complying with the requirements of Class 1, 2 or 5 conductors in EN60228 standard

Core wire insulation: special cross-linked polyethylene insulation material that meets the requirements of EN50363-5 standard;

Core wire color: marked with different colors, may include yellow/green grounding wires

Sheath: Special thermoplastic sheath material

Sheath color: Black sheath

Rated voltage: 600V/1000V

Test voltage: 4000V

Minimum bending radius: 12xD

Working temperature: -15 ° C~+90 ° C

Flame retardant: EN 60332.1
