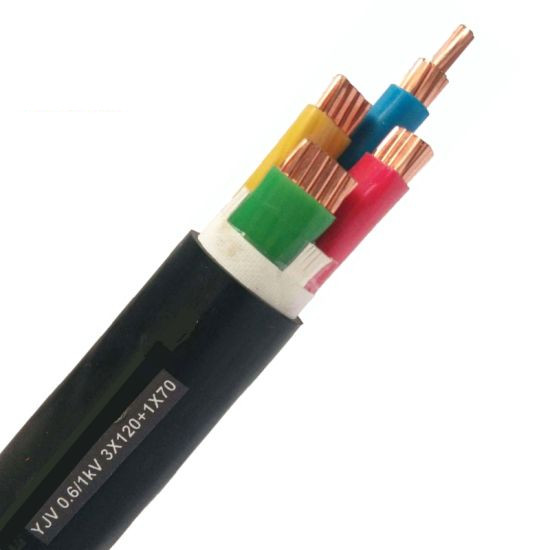

This cable is specifically designed for industrial facilities and urban network distribution systems with a rated voltage of 0.6/1kV and a frequency of 50Hz. Suitable for indoor fixed installation, laid in cable conduits, cable trays, direct burial and trenches, or used in outdoor environments with protection.

Conductor: Bare copper wire stranded conductor, meeting the requirements of Class 1 or Class 2 conductors in EN60228 standard

Insulation: Special cross-linked thermoplastic insulation material that meets the requirements of EN50363-5 standard

Core wire identification: Different colors are used for identification, and green/yellow grounding wires can be set

Outer sheath: Special PVC sheath material that meets the requirements of EN50363-4-1 standard

Sheath identification: Black sheath

Rated voltage: 0.6/1kV

Test voltage: 4000V

Operating temperature: Mobile installation -15 ℃ to+90 ℃

      Fixed installation -40 ℃ to+90 ℃

Minimum bending radius: 12 x cable diameter Ø
