CONSTRUCTION:

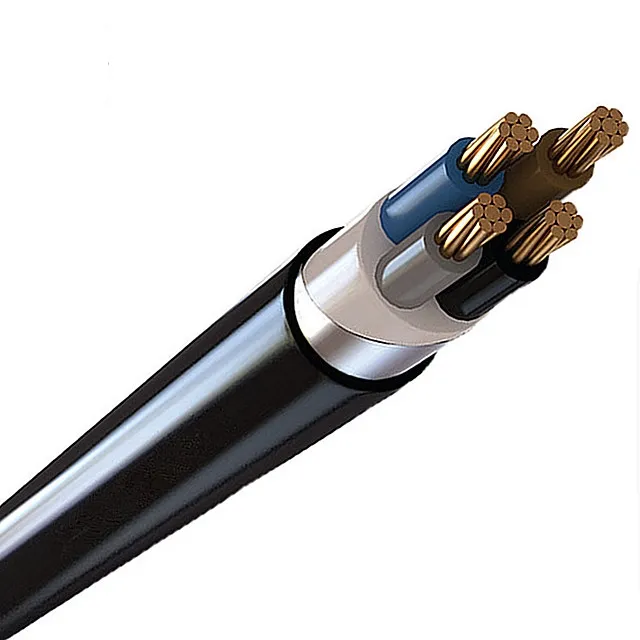

Stranded Copper Conductor(Class 2), PVC Insulation, Double Galvanized Steel Tape Armour, PVC Sheathed

APPLICATION:

For outdoor installations in power stations, industrial plants and switchgears if mechanical protection is required or in applications where mechanical damages are expected to occur.

TECHNICAL DATA:

Conductor: Strand Copper Conductor, Class 2 or Solid copper conductor class1
Operate Voltage:600/1000V
Test Voltage:  4000V
Working Temperature:-5-70 º C
Short-circuit max. Conductor temperature:160°C
Insulation resistance: 20 MΩ x km
