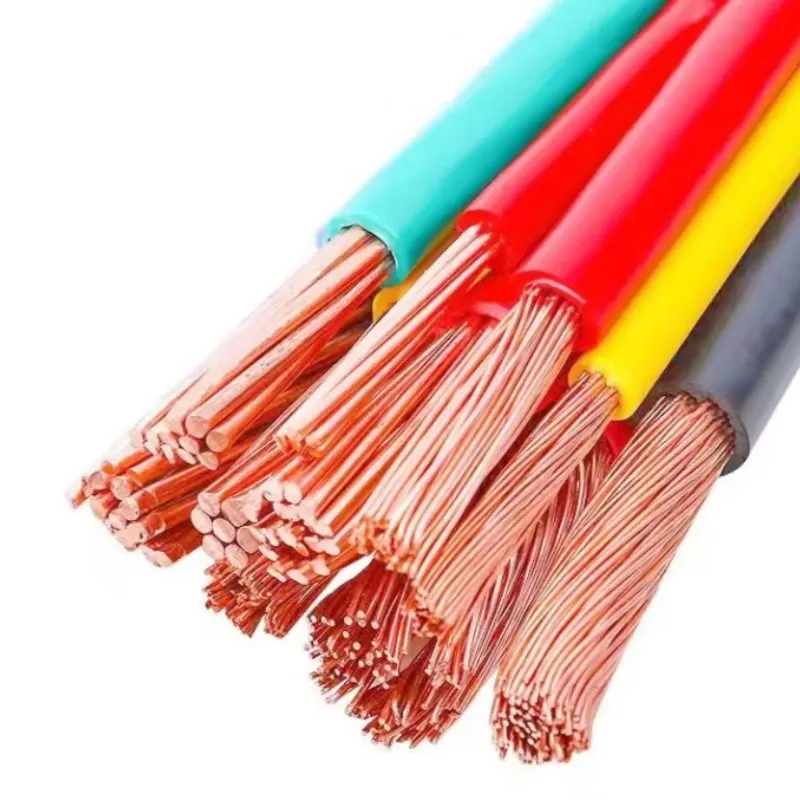

Product model: PVC solid insulated wire

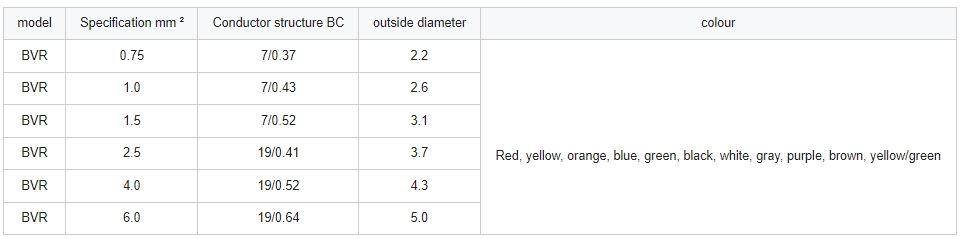

Product specifications: 1.5-400mm², 0.5-1mm², 0.75-1mm²

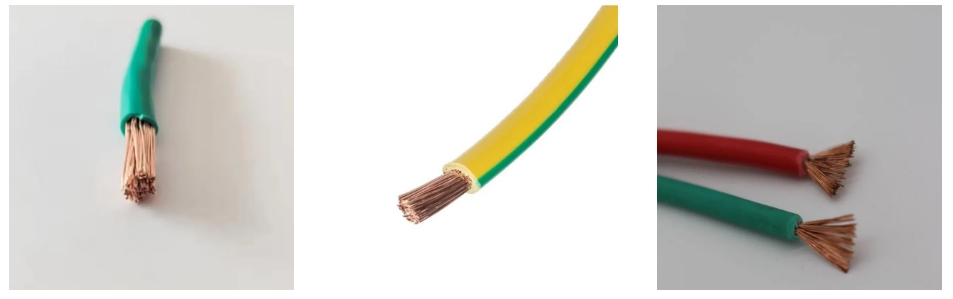

Product colour: red, yellow, blue, green, black; other colors can be customized

Rated voltage: 450/750V, 300/500V, 300/500V
The length of the whole plate: 100m (national standard full meter)

Suitable for use in fixed wiring of power installations and electrical equipment with AC rated voltage 450/750V and below.

Use characteristics: the long-term allowable working temperature of the cable core should not exceed 70ºC, BV-90 type should not exceed 90ºC, the short-term working temperature can be raised to 105ºC, the laying temperature of the cable should not be lower than 0ºC.

Allowable bending radius: when the cable outer diameter (D) is less than 25mm, the allowable bending radius of the cable should be not less than 4D; when the cable outer diameter (D) is 25mm and above, the allowable bending radius of the cable should be not less than 6D.
