Description:
CU/XLPE/STA/PVC, IEC 60502
IEC 60502, IEC 60228, GB/T 12706.1-2008.
CE, CCC, KEMA
0.6/1kV, suitable for underground laying

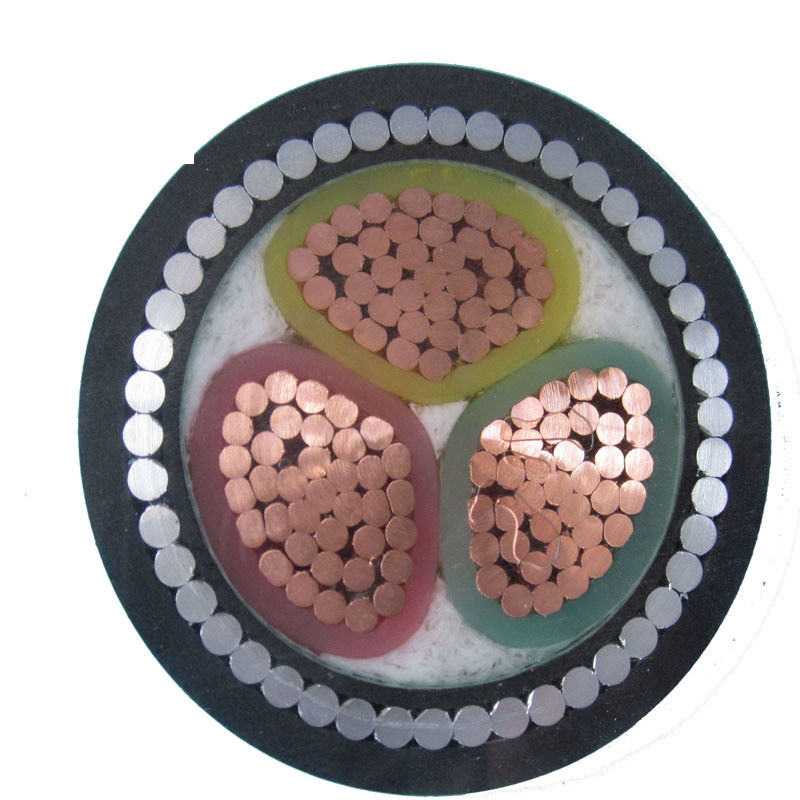

Constructions
Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2
Insulation: XLPE/A
Inner Covering: PVC
Armoring: Steel Tape
Sheath: PVC type ST2 to IEC 60502, black
Note: Insulation color as per standards or at request

Applications
Suitable for U/G laying, Able to bear external mechanical forces but large pulling forces.
Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request

Technical data
Rated voltage: 0.6 / 1 kV
Max. Conductor Temp.: normal (90ºC), short circuit no more than 5 s (160ºC when section-area below 300mm2, 140ºC when section-area above 300mm2)
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0ºC
Min. Bending Radius: 15 *(cable O.D)
