1 CONSTRUCTION
Conductors Flexible class 5 comply to SANS 1411 - 1 from tinned annealed copper wires left lay Insulation Ethylene propylene thermosetting compound type RD 3 comply to SANS 1411-3.

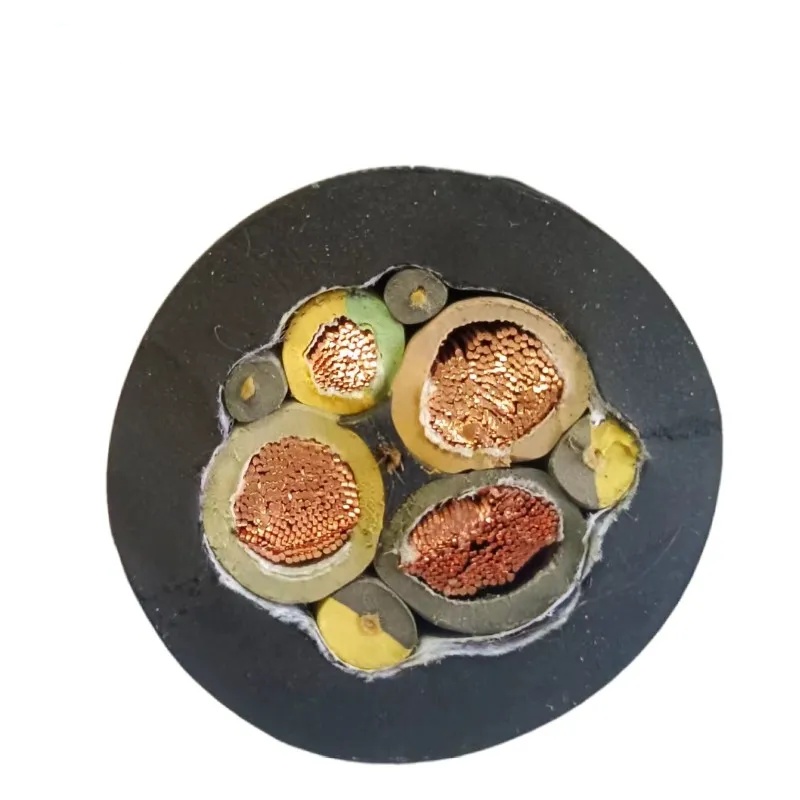

Core of cable Three tinned copper/nylon braid screened power cores and one unscreened pilot core laid up in the right hand lay around rubber (RD1) filler centre.

Inner sheath Poly-chloroprene thermosetting compound type RS 6 comply to SANS 1411-3.

Re-enforcement An open nylon braid . Minimum 16 of nylon strings.

Outer sheath Poly-chloroprene thermosetting compound type RS 6 comply to SANS 1411-3 . Inner and outer sheath are bonded to provide proper torsional protection , black.

Marking TF KABLE 3 Texoprene TR 41 (Size) (Voltage) CR SANS 1520-1 (Year)+metre marking

2 FEATURES

 Excellent flexibility Min. ambient temperature -25 0 C , max. conductor temperature 90C
 Marking for easy identification

3 APPLICATIONS

Electrically driven machines, movable electric apparatus in hazardous areas. For small pumps, fans, drills 2.5 mm2 . For shuttle cars 16 mm2 . Types 16, 25 mm2 suitable for reeling

Standard length cable packing 1000m on drums. Other forms of packing and delivery are available on request
