Applications

Primarily used for overhead service application such as street lighting,outdoor lighting,and temporary service for construction, To be used at voltage of 600V to 2200V phase-to-phase or less at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross liked polyethylene insulated conductors.

 Standards

We could produce the cable according to many standards: ICEA S-76-474,

 ICEA S-95-658,ICEA S-61-402,ICEA S-66-524.NFC 33. IEC

we will do our best to meet your requirements

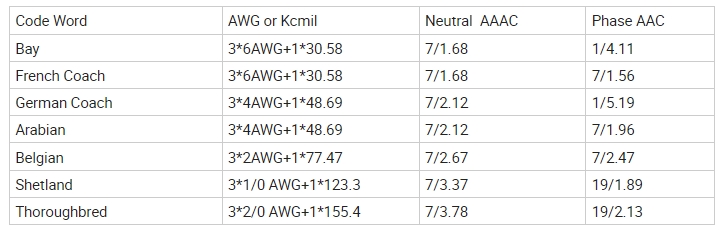

Specification

1. Phase conductor: Aluminum wire, 1350-H19

2. Neutral Conductor : Aluminum wire 1350-H19, All Alloy Aluminum Conductor 6201, Aluminum Conductor Steel Reinforced

3. The material of insulation: XLPE,PE,PVC

4. The Voltage: 600V-2200V

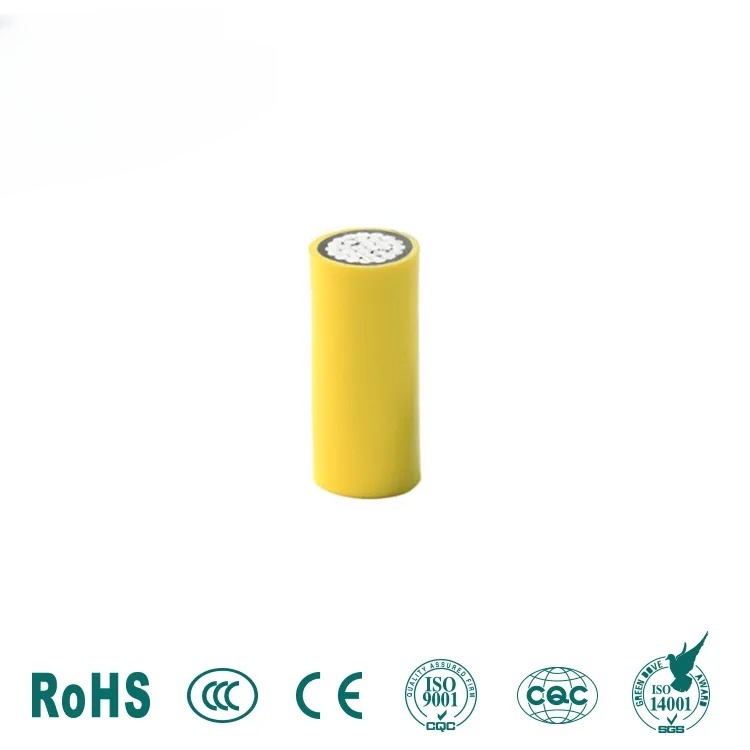

Quadruplex AAAC  Cable
