1.Application

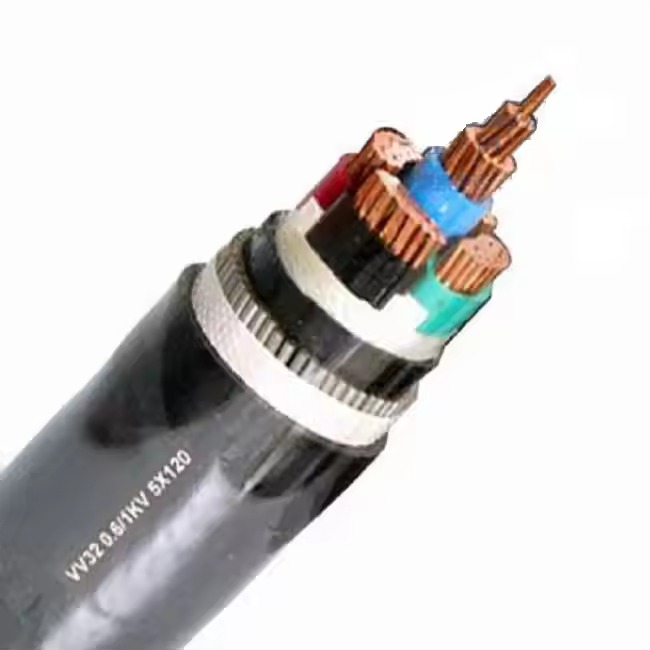

Multi-core PVC cable with steel wire armour (SWA). Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.

2.Construction

Conductor: Class 2 stranded copper conductor acc BS EN 60228 (previously BS 6360)

Insulation: Cross Link polyethylene (XLPE)

Bedding: Polyvinyl Chloride (PVC)

Armour: Steel Wire Armour (SWA)

Sheath: Polyvinyl Chloride PVC

3.Standard

BS 5467

Flame propagation: BS EN 60332-1

BASEC Approved

5 core 95mm and above are maufactured to IEC60502-1 and are not covered by BASEC.

4.Specification Examples

Voltage Rating: 600/1000 Volts

Temperature Rating: Fixed -25°C to +90°C

Minimum Bending Radius: As Per Manufacturers Datasheet.

Should not be installed at temperatures below 0°C or above +60°C
