Cu/xlpe/pvc Power Cable

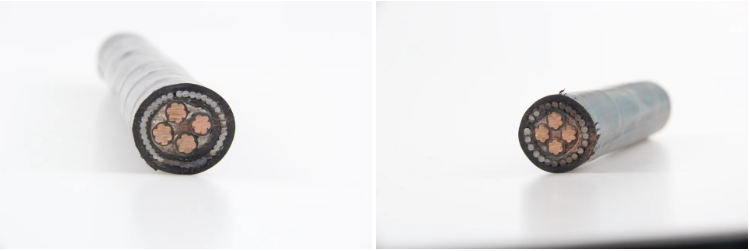

Description:600-1000V SWA Armoured Cable

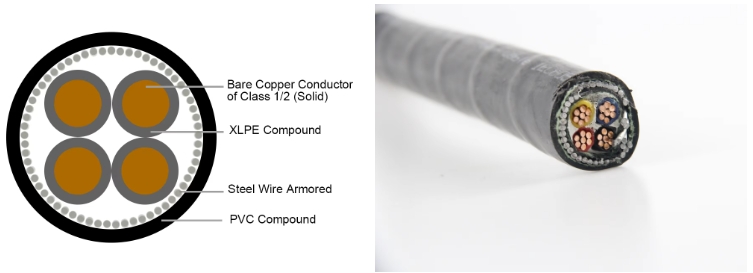

Conductor:Bare Copper Conductor of Class 1/2 (Solid)

Insulation:XLPE CompoundInsulation

Color:Red, Blue, Grey, Yellow/Green or as request

Sheath:PVC Compound

Sheath Color:BlackArmourSteel Wire Armour(SWA)

Temperature Range:-20 -90℃Nominal Voltage:600/1000V

Test Voltage:3500 V

Minimal Bending Radius:15D for Single Core 12D for Multicore

Standard:GB/T12706.2-2008

Cores x conductor cross-section	Conductor construction	External diameter	Insulation thickness	Sheath thickness	Conductor resistance at 20 °C	Cu weight	Cable weight
	nominal	approx.	nominal	nominal	max.		approx.
N x mm²	n x mm	mm	mm	mm	Ω/km	kg/km	kg/km
4 x 50	19 x 1,83	37,1	1,4	2,1	0,387	1920	3185
