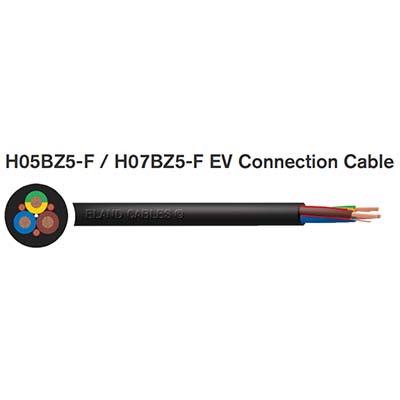

APPLICATION

Robust flexible multicore PUR sheathed cable compatible with

European standard electric vehicle AC charging modes 1

(single phase - domestic), 2 and 3 (single/three phase -

commercial/public) installations. Suitable for trailing EV plug

connections to vehicle.

CHARACTERISTICS

Voltage Rating U/Uo

H05BZ5-F 300/500V

H07BZ5-F - 450/750V

Temperature Rating

Operating: -40°C to +90°C

Minimum installation and use temperature: -40°C

Maximum temperature of short circuit: +250°C

Minimum Bending Radius

6 x overall diameter

CONSTRUCTION

Conductor

Class 5 flexible stranded Copper

Insulation

Rubber Compound type EV1-2

Control/Pilot Cores

Class 5 Flexible Copper with Rubber insulation

Sheath

PUR-HF (Polyurethane, Halogen-Free)

Sheath Colour

Black Orange

STANDARDS

EN 50620, IEC 62893, EN/IEC 60228, IEC 60811-404, IEC

60332-1-2, IEC 60811-100, EN 62230, IEC 61851-1
