1.Application

 As a flexible interconnecting cable for electronics, control and command technology, as well as in measurement, signal, and pulse technology. Fast and inexpensive contacting by cutting and clamping technology.

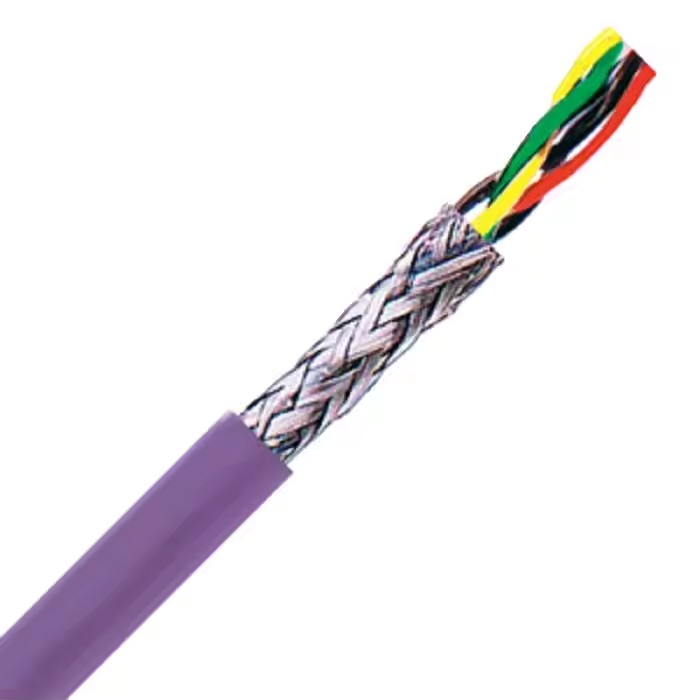

2.Construction

Tinned copper conductor, fine wire,

AWG 26-20 to ASTM-B 174-95 class J-M,

AWG 18-16 to ASTM-B 286

Conductor make-up to:

0,14 mm² = 7x0,162 mm

0,23 mm² = 7x0,202 mm

0,34 mm² = 7x0,254 mm

0,56 mm² = 7x0,32 mm

0,82 mm² = 19x0,235 mm

1,30 mm² = 19x0,31 mm

Core insulation of special PVC,

respectively semirigid acc. to

UL Std. 1581 tab.50.182 and 50.183

Core identification to DIN 47100

or international colour code

Cores stranded in layers with

optimal lay length

Seperator-foil

Drain wire

Tinned copper wire braiding,

approx. 85% coverage

Outer sheath of PVC

acc. to UL Std.1581 tab.50.182

Sheath colour:

grey (DIN 47100)

black (international colour code)

3.Standard

 AWG 26-20 to ASTM-B 174-95 class J-M,

AWG 18-16 to ASTM-B 286
