1.Application

To be laid directly in ground, water, outdoors, indoors and in cable ducts e.g. in industrial and switchboard plants

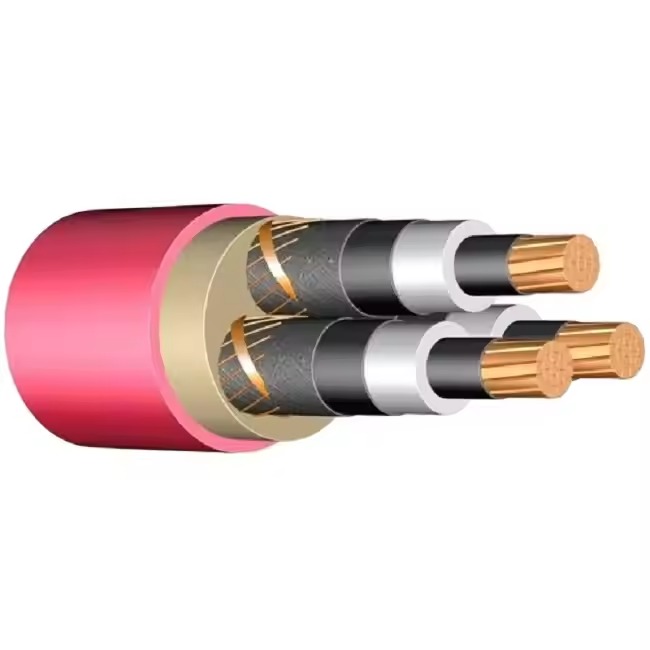

2.Construction

1 ..... stranded bare copper

2 ..... inner layer of semi-conducting material

3 ..... core insulation of cross-linked polyethylene

4 ..... outer layer of semi-conducting material

5 ..... semi-conducting tape

6 ..... screen of copper wires

7 ..... inner covering over laid-up cores

8 ..... outer sheath of polyvinylchloride (PVC), red

3.Standard

DIN VDE 0276-620 HD 620 S1: 1996 IEC 60502 DIN EN 60228 class 2 (construction)
