APPLICATION

Mainly used in wiring of solar power system with earth or no earth

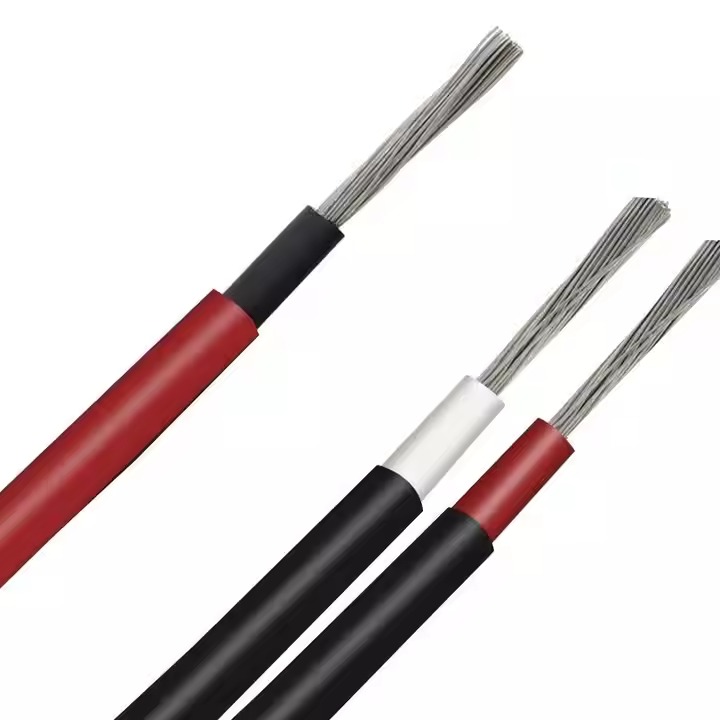

STRUCTURE

Conductor: Tinned copper soft conductor in UL4703

Insulation: LSZH electron-beam cross-linked Polyolefin(1250C)

Sheath: LSZH electron-beam cross-linked Polyolefin (1250C)

Color: Red or blac

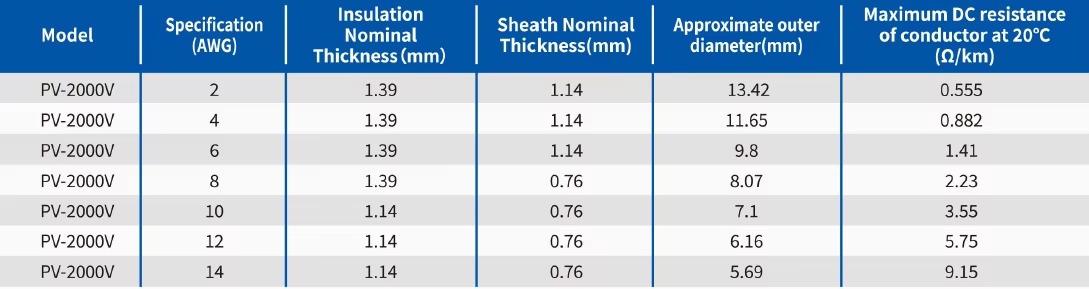

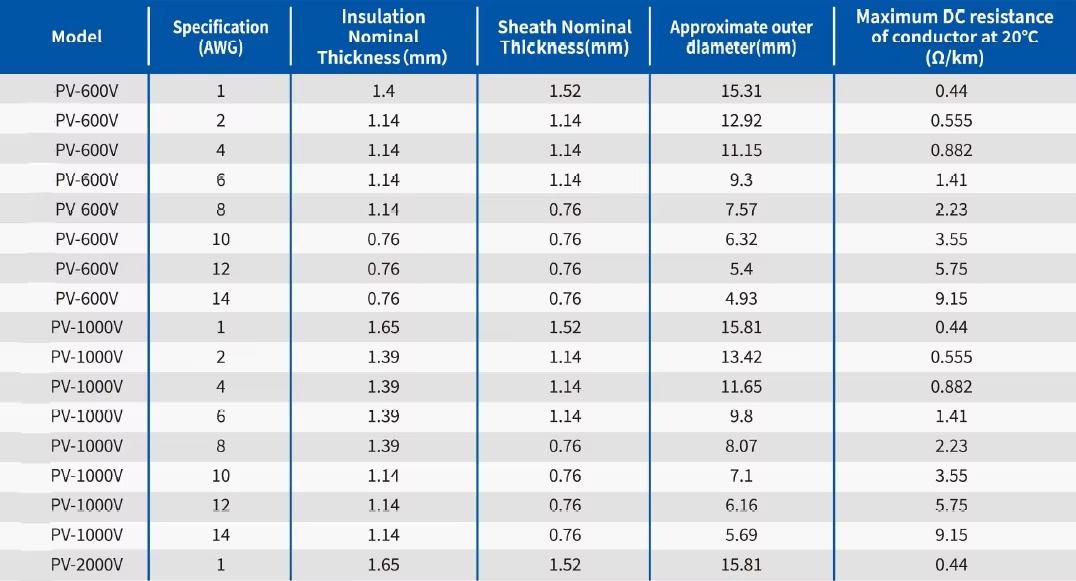

TECHNICAL INDICATORS

Nominal voltage: 600V(AC), 1000V(AC), 2000V(AC)

Ambient temperature:-400C -- +900C

Conductor max. temperature: 1250C

Max. short circuit temperature: 2500C/5S

Expected service life: 25years

Min. bending radius: 4D
