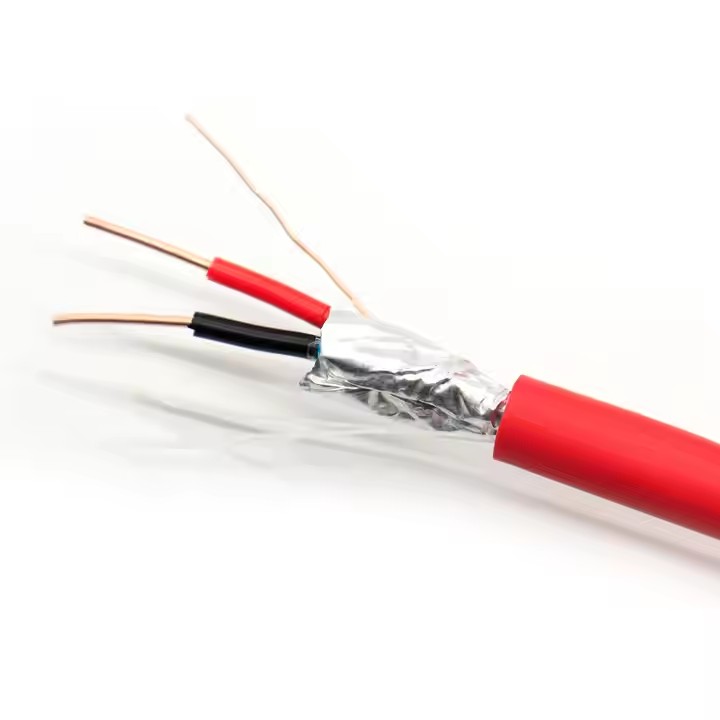

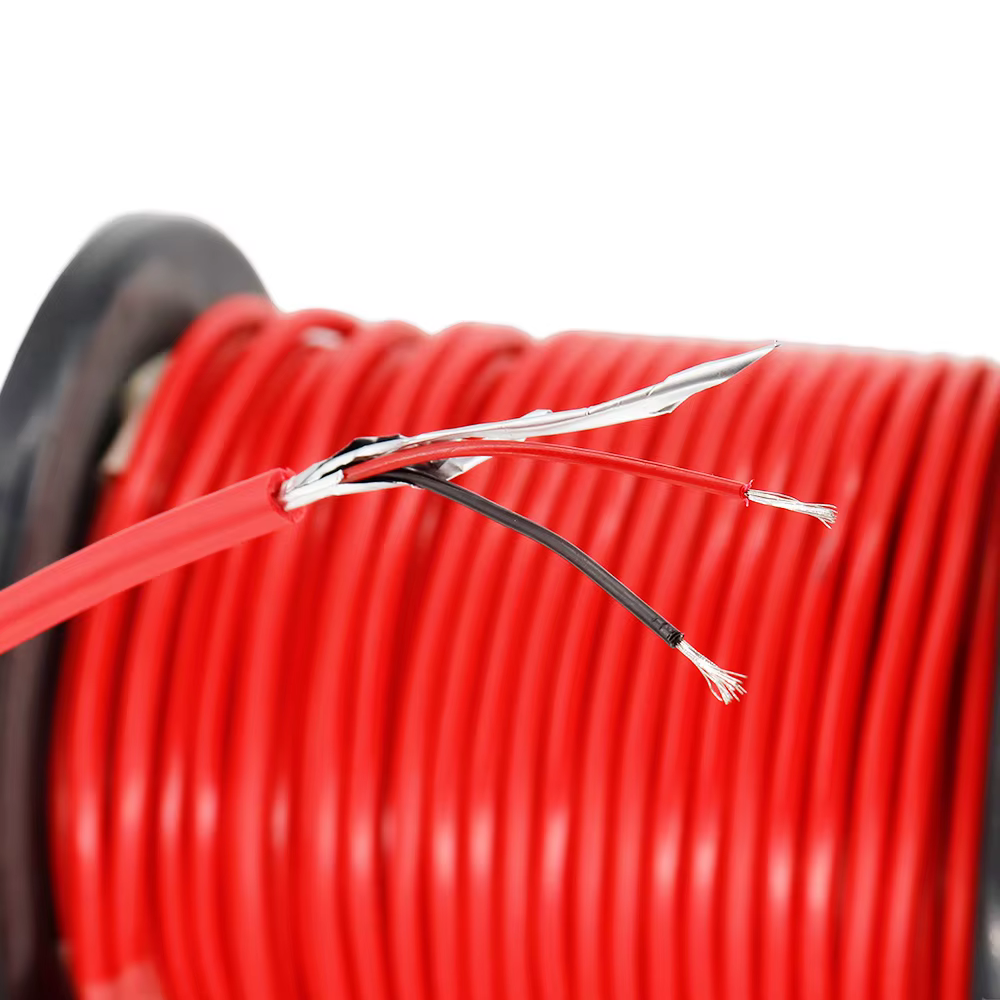

These fire resistant cables for use primarily in fire detection, fire alarm, voice alarm, and emergency lighting circuits.
These cables are designed to continue to operate for a period of time in a fire situation. Standard fire resistance is recommended for general use.
Model | Fire Alarm Cable |
Conductor | Class 5 copper conductor |
No. of Cores | 2-12 |
Conductor Type | stranded |
Insulation | PVC |
Jacket(Sheath) | PVC |
Standards | IEC 60228 |
Working Voltage | 300/500v |
Nominal cross-sectional area of conductor(mm²) | 14~24(awg) |
Colors | Grey or custom |
Temperature Rating | -30℃ ~+80℃ |
Minimum Bending Radius: Fixed: | 5 x overall diameter |
Minimum Bending Radius: Flexed | 7.5 x overall diameter |
No. of Conds. | AWG Size | Nominal Insulation | Nominal Jacket | Nominal O.D. (Approx) |
4 | 24 | 0.21mm | 0.7mm | 3.9mm |
6 | 24 | 0.21mm | 0.7mm | 4.2mm |
8 | 24 | 0.21mm | 0.84mm | 5.0mm |
12 | 24 | 0.21mm | 1.00mm | 6.0mm |
4 | 22 | 0.30mm | 0.88mm | 5.1mm |
2 | 18 | 0.38mm | 0.76mm | 5.3mm |
4 | 18 | 0.38mm | 0.76mm | 6.09mm |
6 | 18 | 0.38mm | 0.76mm | 6.9mm |
2 | 16 | 0.38mm | 0.76mm | 5.9mm |
4 | 16 | 0.38mm | 0.76mm | 6.7mm |
2 | 14 | 0.38mm | 0.76mm | 6.65mm |
4 | 14 | 0.38mm | 0.76mm | 8.68mm |
