Application:

These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit,buried direct or in undergound ducts for buildings and industrial plants where not subject to mechanical damage, suitable fo glanding.and suitable to be used in fixed installation especially in power and lighting circuits of commercial buildings. It is resistant against UV and thus could be used outdoors under sunlight.

Technical Data:

Reference Standards :           Sizes 1.5mm2 to 6mm2 refer AS/NZS 5000.2

                                               Sizes 10mm2 to 120mm2 refer to AS/NZS 5000.1

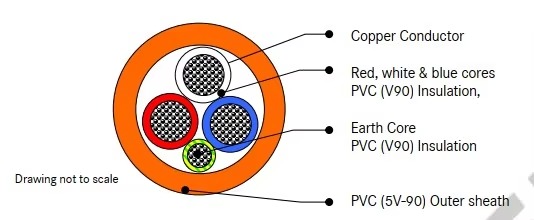

Conductor :                             Fine plain annealed copper

Conductor Stranding :             Multi–wire in acc. to AS/NZS 1125

Insulation Material :                 V-90, comply with AS/NZS 3808

Core colours :                          Red, White, Blue, Black, and Green/Yellow

Sheath Material :                     5V-90, comply with AS/NZS 3808

Sheath Colour :                       Orange

Electrical Data:

Voltage Rating :                       For sizes 1.5mm2 to 6mm2 - 450/750V

                                                 For sizes 10mm2 to 120mm2 - 600/1000V

Test Voltage :                           3.5kV/5min to AS/NZS 1660

Insulation Resistance :             Min 5 Mohm/km

Mechanical data:

Min. Bending Radius :           ≤ 25mm2 4 x OD (fixed installation)

                                               ≥ 35mm2 6 x OD (fixed installation)

Temperature Rating :            -20°C up to +90°C

Flame Retardant :                 In acc. to AS/NZS 1660.5.1/IEC 60332.1

UV Resistant :                       In acc. to AS/NZS 5000.1

Test Methods:                   - 450/750V comply with AS/NZS 5000.2

                                              - 600/1000V comply with AS/NZS 5000.1

Standard packing:

For conductor sizes 1.5 to 16.0mm2, packing in 1000m drum

For conductor sizes 25 & 35mm2, packing in 500m drum

For conductor sizes 50 & 120mm2, packing in 250m drum
