Conductor: Solid copper, Class 2 Stranded copper, Class 5 Flexible plain copper

Insulation:  General PVC, flame retardant PVC, XLPE,  LSOH

Screen: Copper tape shield, copper wire braided, PETP Foil &  Tinned copper braiding, Individual shielded, Overall Shielded

Armored:  Galvanized Steel Wire, Galvanised Steel Tape

Sheath: PVC, LSOH

The control cables are used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines. They are suitable for connection of electric apparatus and instrument in electricity distribution equipment.

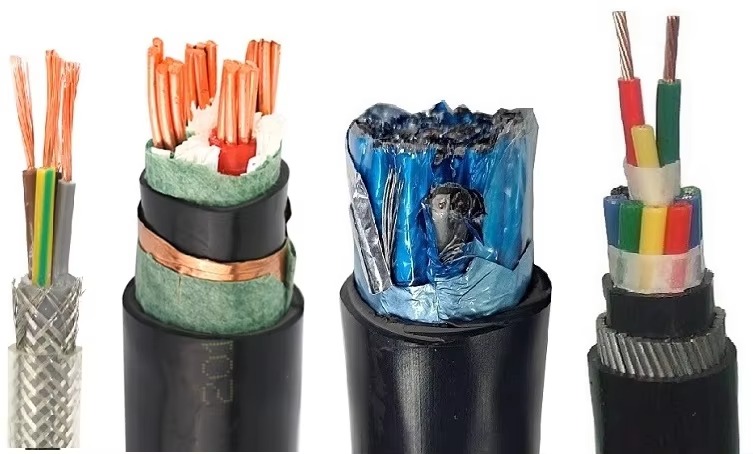

Part of the types:

YY PVC Control Flexible cable: Flexible plain annealed copper conductors, PVC insulated/PVC sheathed. 300/500 V

YY LSZH Control Flexible Cable:  Class 5 Flexible plain copper conductors, XLPE insulated/LSZH sheathed. 300/500 V

SY Control Flexible cable: Class 5 Flexible plain copper conductors, PVC insulated, Galvanized Steel Wire Braid, PVC sheathed. 300/500 V

CY Screened flexible control cable: Class 5 Flexible plain copper conductors, PVC insulated, PETP Foil & tinned copper braiding, PVC sheathed. 300/500 V

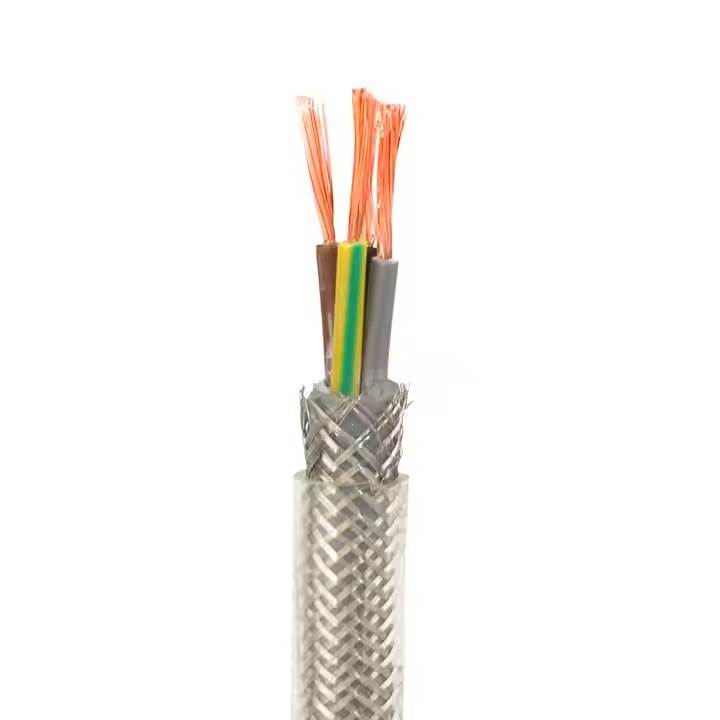

LiYCY : Class 5 Flexible plain copper conductors, PVC insulated, PETP Foil & tinned copper braiding, PVC sheathed. 300/500 V

CVV-S Control Cable: Stranded Copper Conductor, PVC Insulation, Polyester Tape & Copper Tape shield, PVC Jacket  0.6/1kV
