1.Application

This product has been designed to operate at no more than 60°C in dry or wet conditions.Besides that , the Nylon sheath provides protection to chemical agents and petroleum derivatives ,therefore this product might be used for  wiring solutions at either industrial or commercial and residential applications.Its black pigmentation on the external jacket resist the ultraviolet sun light exposure,thereby,these might be used at outside or wet applications.

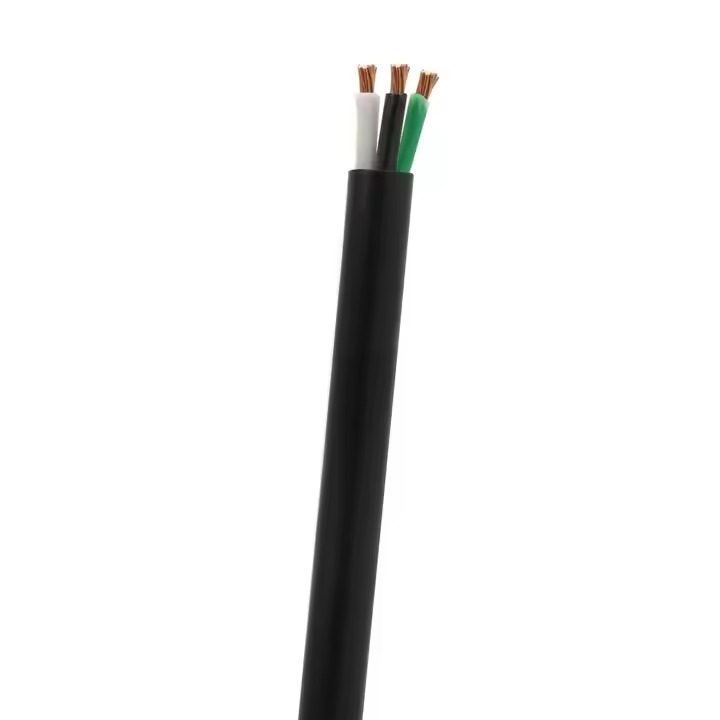

2.Construction

TSJ conductor is an insulated multiconductor composed by bunch-stranded annealed copper flexible conductors,each single cord has a thermoplastic insulation of pvc and its protected by a nylon sheath,in additon,the whole multiconductor is protected by a thermoplastic insulation of PVC.Designed to operate at not more than 600v ,the TSJ is manufacture in constructions duplex ,triplex and quadruplex ,also in sizeds from 20 AWG up to 6awg.

3.Standard

TSJ condcutors have been designed according to ASTMB172,B174,U L62 and U L-83 specifications and requirements of the latest version of the National Electrical Code
