YVV 0.6/1 kV TS IEC 60502-1

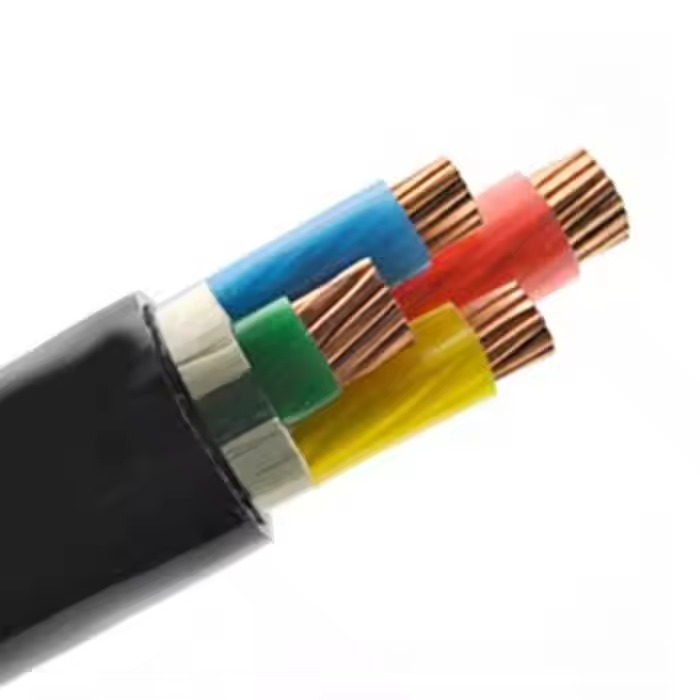

Structure

Solid or stranded copper conductor

PVC insulation

PVC filler

PVC outer sheath

Technical specification

Permissible operating temp. : 70 °C

Maximum short circuit temp. : 160 °C

Test voltage (AC): 3,5 kV

 (for +≤ 5 sec.)

Installation temp. min: -5 °C

Applications

At power distribution stations, house hold premises, at industrial plants in cable ducts and pipes. Where there is no risk of mechanical damage.
