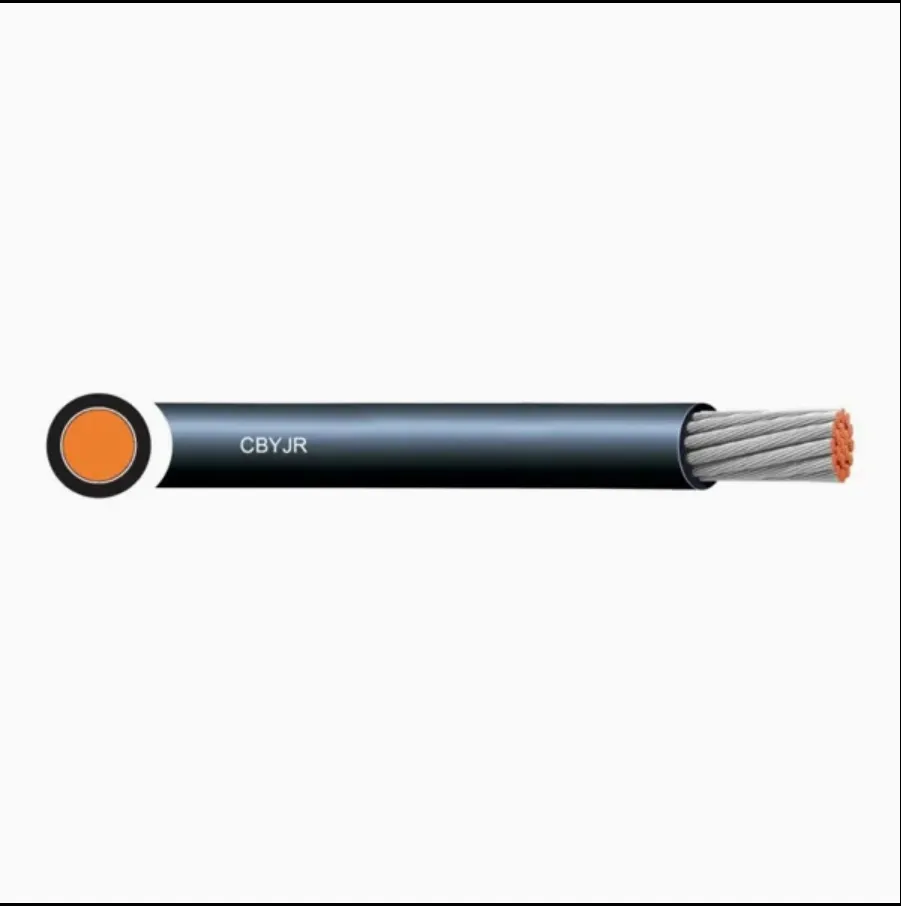

Cable model
CBYJR/DA-0.6/1 kV

technical parameter
temperature grade
In normal use, the maximum operating temperature of the conductor is 90ºC
Ambient temperature: -40ºC ~ + 50ºC
Cable laying temperature: not less than 0ºC (if the ambient temperature is less than 0ºC, the cable shall be preheated)

minimum bending radius
Single core cable: D 25 mm, minimum bending radius of 4D
D> 25 mm with a minimum bending radius of 6 D
(D is the actual outer diameter of the cable)

Laying method
Pipe-through laying, shallow trough laying, tunnel laying, interlayer laying, deck laying, etc.
