Conductor: Bare Copper

Insulation:PVC

Jacket: PVC

Cores:3cores,4,cores,5cores,...12cores,.....60cores

Rated Voltage:cross section ≤1.5mm²,300V/500V

              cross section>1.5mm²,450V/750V

Test voltage: 2500V

Working Temperature:-15ºC~+70ºC

Min. Bending Radius:0.3m

Standards: GB5023.6, IEC60227-6

Application:

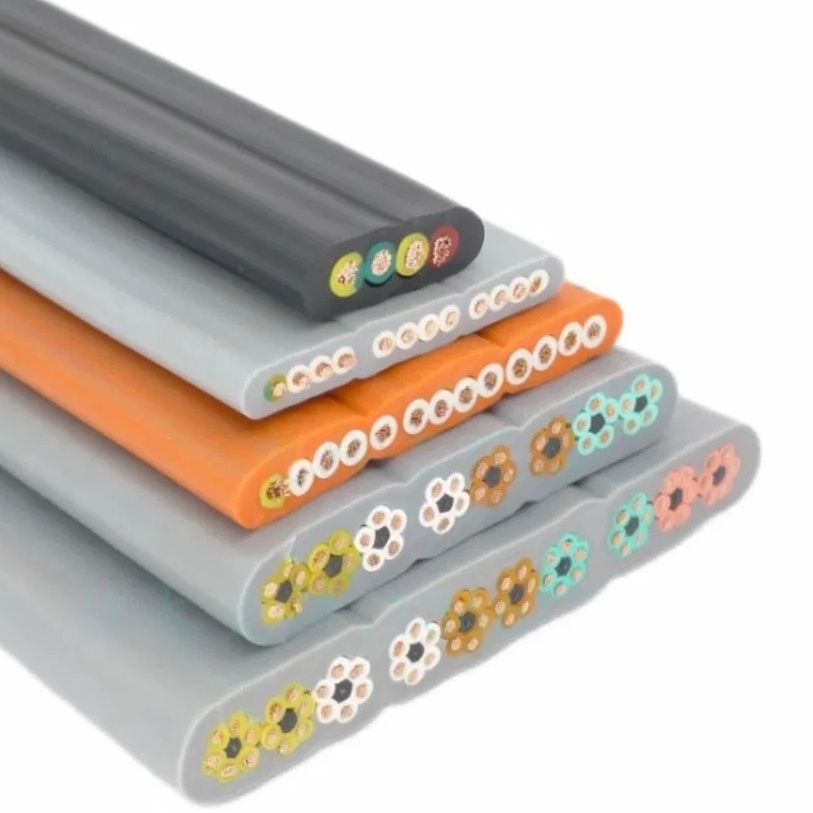

TVVB flat elevator cable is mainly used for flexible suspension length within 80 meters .

Customize Service:

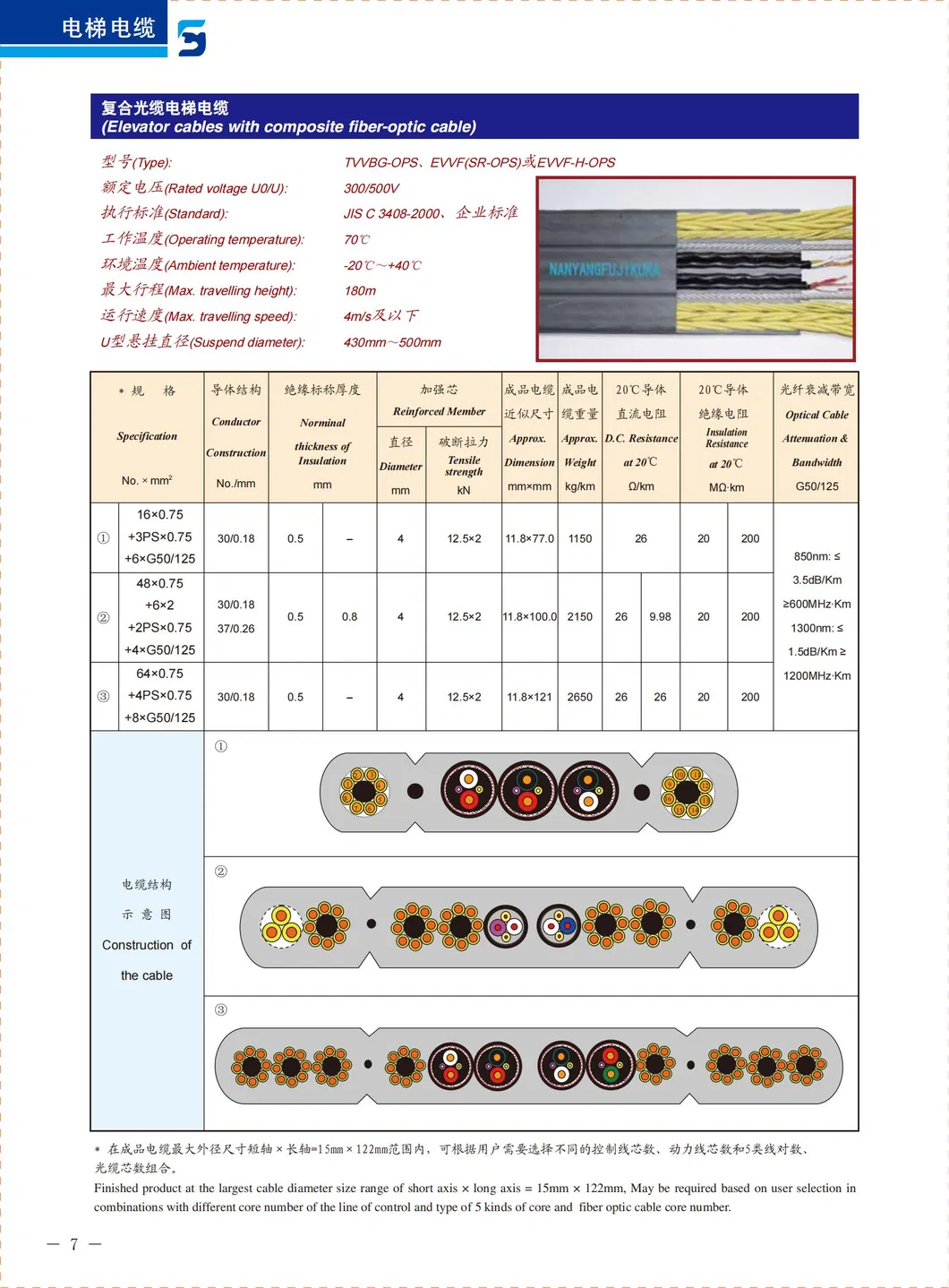

QIFAN CABLE can also customized composite cable with control and coaxial cable for elevator as well as moving machine parts, its bending radius is smaller compared with round cables.

1.coaxial cable:RG59,RG6,SYV75-2,SYV75-3

2.Network cable: Cat5e,Cat6

3.Control Cable: RVVP-2*0.75mm²,or other shielded cable.

4.Steel wire,  reinforcing steel wire and various other specifications of high tensile strength.
