1. Rated voltages U0/U: 450/750V

2. Permissible Max. continuous operating temperature of conductor:

3. PVC insulated: 70℃;XLPE insulated: 90℃.

4. Upon short circuit (Max. Duration time 5s) the Max.temperature of conductor not higher than:

5. PVC insulated: 160℃; XLPE insulated 250℃.

6. Ambient temperature of installation not less than 0℃.

7. Preferred permissible bending radium:

8. For non-armored cable, not less than 6 times of cable diameter;

9. For armored or copper-tape-screened cable, not less than 12 times of cable diameter;

10.For screened flexible cable, not less than 6 times of cable diameter.

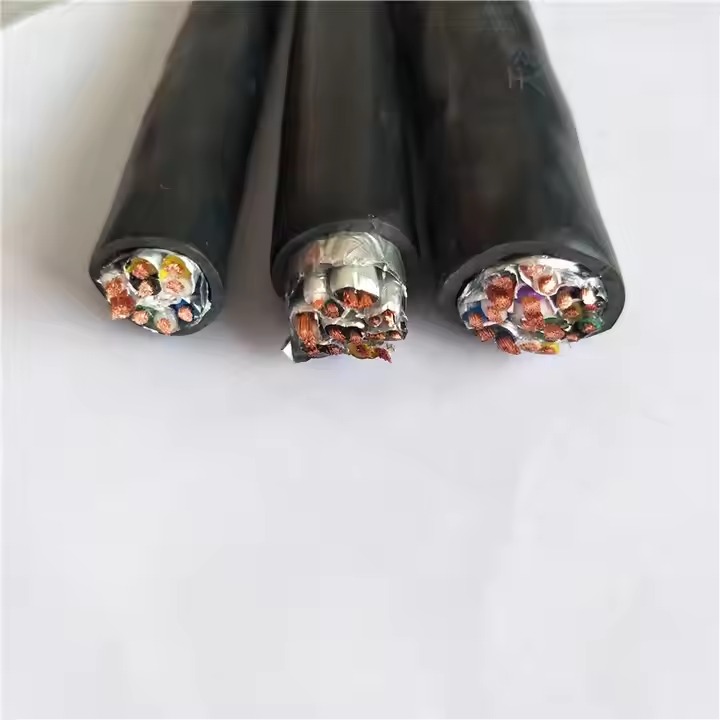

It is used for cables with high anti-interference performance requirements. It can also be used for signal transmission of power generation, chemical industry, petroleum, metallurgy and other industrial and mining enterprises, electronic computer systems, monitoring circuits, automation systems, and multi pair shielded cables for the connection of detection instruments and instruments.
