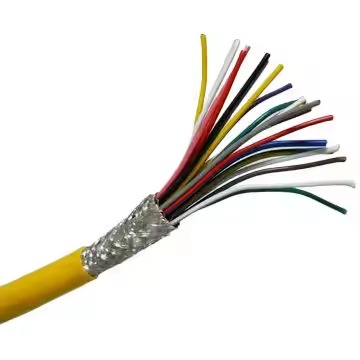

FLEX-CY-JZ is an oil-resistant PVC, reduced diameter power and control cable with a tinned copper wire braid. Used as a measuring, regulating and control cable used in machine tool, plant engineering and construction, assembly and production lines and other applications in electrical equipment. Designed for free and unrestricted movements without exposure to tensile loads. Due to the tinned copper braiding, FLEX-CY-JZ cables are suitable for interference-free data and signal transmissions in signal and control applications or where greater electromagnetic compatibility is required. The common inner jacket is replaced by a foil separator giving this cable a reduced diameter, bending radius and weight. Outdoor installation is not permitted.

Product Specifications

Construction:

Fine bare copper strands

Strands to VDE-0295 Class-5, IEC 60228 Cl-5

Special PVC core insulation

Color code VDE-0293 - black & numbered

Plastic foil separator

85% Tinned Copper Braid

Gray PVC outer jacket (RAL 7001)

“OZ” denotes no ground wire

Extremely oil & chemical resistant

Technical:

Working voltage: 300/500 volts

Testing voltage: 4000 volts

Flexing bending radius: 10 x Ø

Static bending radius: 5 x Ø

Flexing temp: -5º C to +70º C

Static temp: -30º C to +80º C

Flame retardant: IEC 60332.1

Insulation resistance: >20 MΩ x km

Approvals:

VDE-0245, 0281 Part 13

CE Low Voltage Directive 2014/35/EU

RoHS compliant
