Application

Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for flexible use in conditions of light mechanical stress. Can be used outdoors when protected against direct sunlight, and in dry or moist conditions indoors.

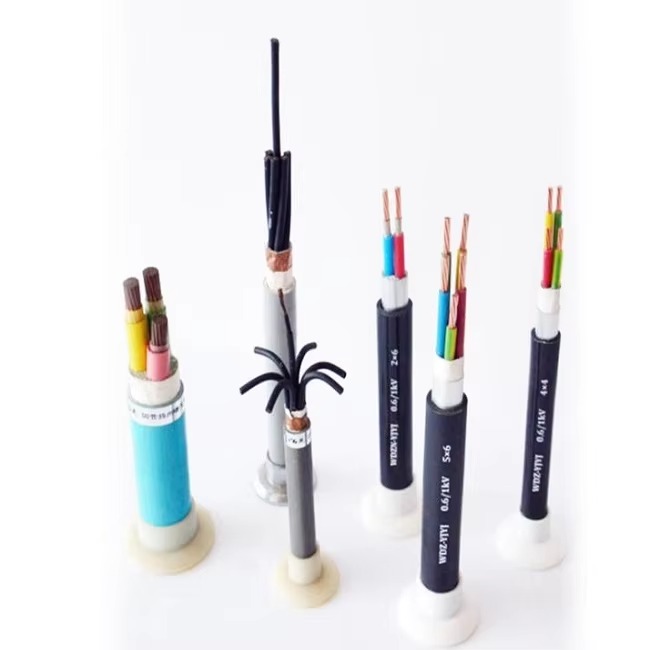

Construction

CONSTRUCTION

Conductor: Plain Annealed Copper, Class 2 Stranded circular or compacted

Insulation: Polyvinyl Chloride (PVC) Compound Type PVC/TI1

Insulation colour:

2 cores: Brown, Blue

3 cores: Brown, Black, Grey or Brown, Blue, Green/Yellow

4 cores: Brown, Black, Grey, Blue

5 cores: Brown, Black, Grey, Blue, Green/Yellow or White with Black numbering

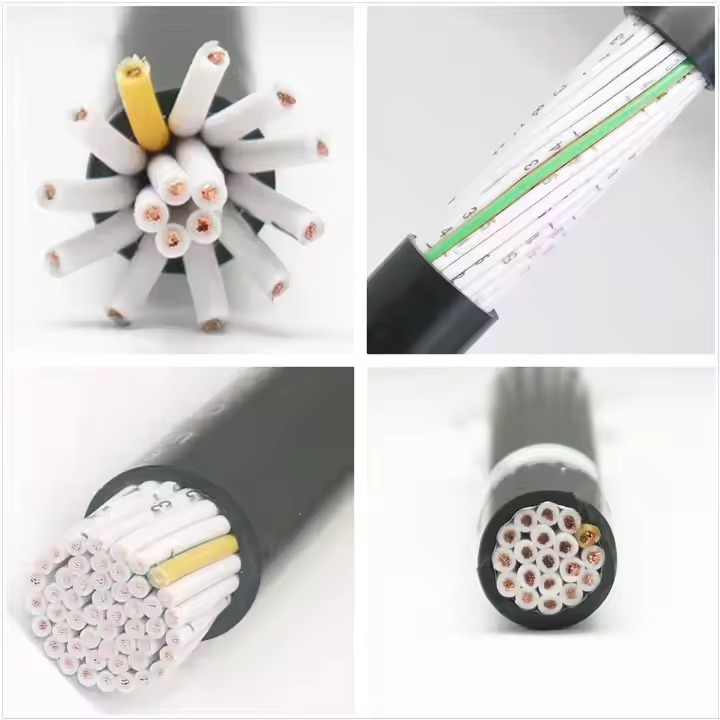

7 cores and above: White with black numbering

Assembly: Cores cabled together and bound with binder tape

Outer sheath: Polyvinyl Chloride (PVC) Compound Type PVC/TM1

Outer sheath colour: Black

ELECTRICAL CHARACTERISTICS

Operating voltage, U0/U: 600/1000V

Operating temperature: -15°C to +70°C

Final short circuit temperature: 160°C

Test Voltage: 3.5kV for 5 minutes

REFERENCE STANDARDS

Design specification: BS6346 (specification withdrawn), in-house

Conductor: IEC60228, BS EN60228

Flame retardancy: IEC60332-1, BS EN60332-1

INSTALLATION REFERENCE

Minimum bending radius (mm): 8 x cable overall diameter

Maximum pulling tension: 50N/mm²
