APPLICATION

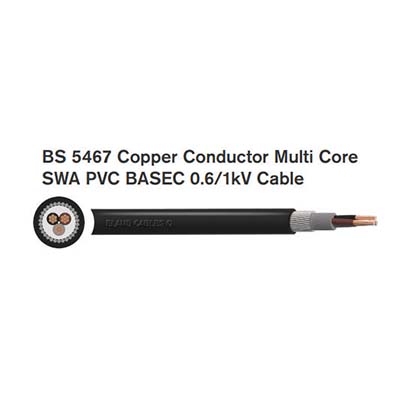

Multi-core PVC cable with steel wire armour (SWA). Power

and auxiliary fixed wiring cables for use in power networks,

underground, outdoor and indoor applications and for use in

cable ducting.

CHARACTERISTICS

Voltage Rating Uo/U

0.6/1kV

Temperature Rating

Fixed: -25°C to +90°C

Minimum Bending Radius

1.5mm2 to 16mm2 - Fixed: 6 x overall diameter

25mm2 and above - Fixed: 8 x overall diameter

CONSTRUCTION

Conductor

Class 2 stranded copper conductor

Insulation

XLPE (Cross-Linked Polyethylene)

Bedding

PVC (Polyvinyl Chloride)

Armour

SWA (Steel Wire Armour)

Sheath

PVC (Polyvinyl Chloride)

Core Identification

2 core: Brown Blue

3 core: Brown Black Grey

3 core (optional) : Green/Yellow Blue Brown

4 core: Brown Black Blue Grey

4 core (optional) : Green/Yellow Brown Black Grey

5 core: Green/Yellow Brown Blue Black Grey

7 core and above: White cores with Black numbers

Sheath Colour

Black
