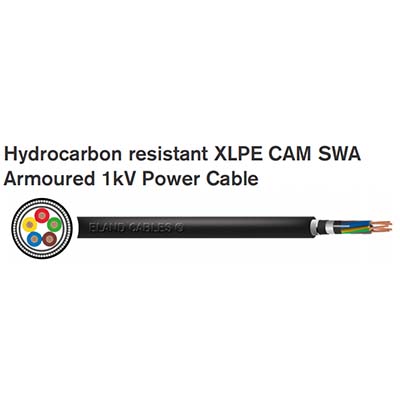

APPLICATION

These cables are used for electricity supply in low voltage

installation system. They are suitable for installation in indoors

and outdoors, in cable ducts, under ground, in power and

switching stations, local energy distributions, industrial plants

and where aliphatic and aromatic hydrocarbon may be present

or where require chemical and mechanical protections.

CHARACTERISTICS

Voltage Rating (Uo/U)

0.6/1kV

Temperature Rating

-20°C to +60°C

CONSTRUCTION

Conductor

Class 1 Solid (RE) or Class 2 Stranded (RM) Copper

Insulation

XLPE (Cross-Linked Polyethylene)

Inner Sheath

PVC (Polyvinyl Chloride)

Screen

Aluminum/Polyethylene tape

Drain Wire

Tinned copper

Inner Sheath

HDPE (High Density Polyethylene)

Intermediate Sheath

Polyamide

Armour

Galvanized steel wires (Single core: aluminum wires)

Outer Sheath

Special PVC (Polyvinyl Chloride)

Core Identification

1 Core (choice): Red Black

2 Cores: Red Black

3 Cores: Red Yellow Blue

4 Cores: Red Yellow Blue Black

5 Cores: Red Yellow Blue Black Green

7 Cores and Above: Black with White Numbers

Sheath Colour

Black
